ER1500C
Home ER1500C
ER1500C
IP & PoE Extender over Coax Receiver.
Product Description
* Product must be used in conjunction with compatible Etherstretch Transmitter*

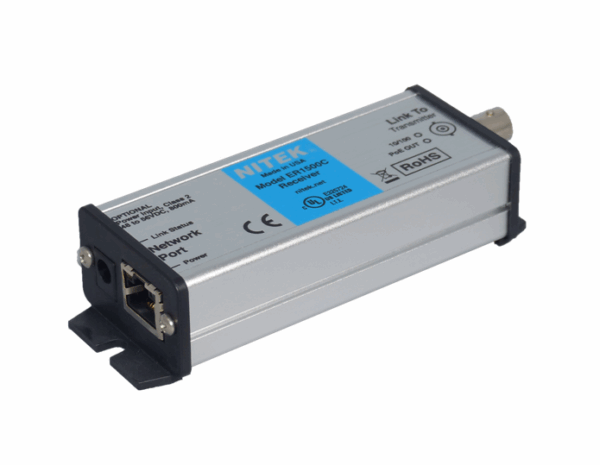

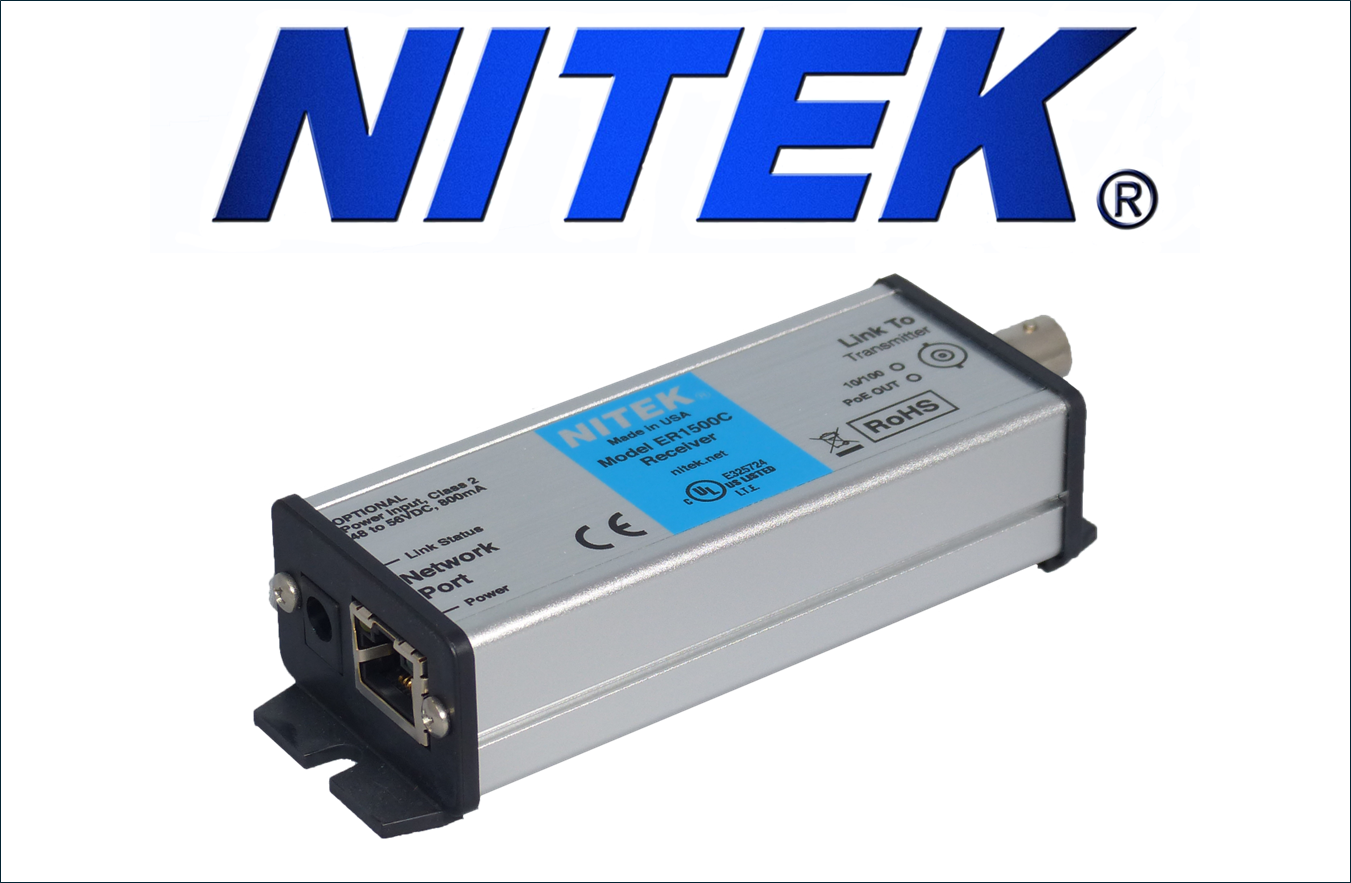

The ER1500C a single channel the near-side receiver for IP & PoE over Coaxial cable transmission. This environmentally hardened device takes in 10/100 Ethernet and Power Over Ethernet (PoE) and delivers them at distances of up to 500m over RG-59 or RG-6 coaxial transmission lines, delivering full IEEE802.3at performance to the far end via a companion transmitter.
The ER1500C is normally situated near the PoE switch for power and data. For situations where PoE is not available, the ER1500C and the link can be powered using an optional PS48 power supply into the power jack of the ER1500C.
Features
- IP Network Extender transmits over coax up to 500m (1640′)
- Extends PoE to Transmitter and IP cameras or Network devices
- Environmentally Hardened to meet NEMA TS-2 specifications
- LED indicators for network signals, link status and power
- Transparent to the network
- No setup required
- Lifetime Warranty
Compatible Products
Compatible Transmitters: Accessories: Transmission Sets:
ET1500C IP over Coaxial Surge EL1500C
ET1543C Ethernet Surge Protection EL1543C
Compatible Midspan:
Bundles and Variants
