EM2500C
Coax Midspan Extender for Etherstretch Transmission with additional Ethernet Drop
Product Description

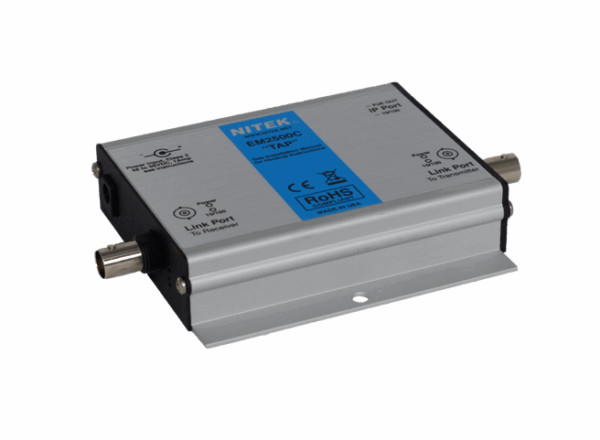

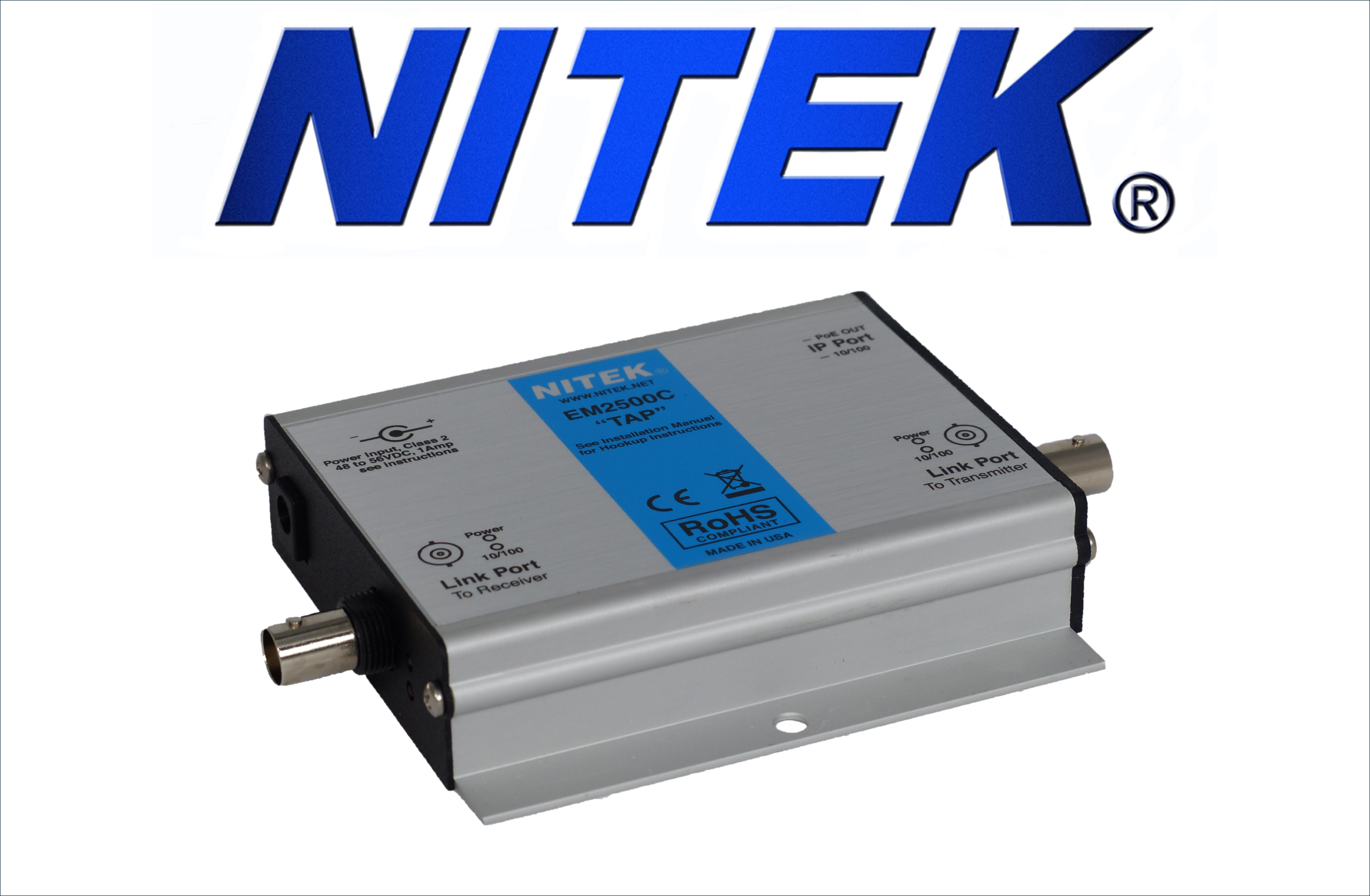

The EM2500C is a mid-span repeater/extender for NITEK’s EtherStretch Ethernet & PoE over coax solution. It allows for the introduction of a
powered 10/100 Ethernet port in the middle of an existing coaxial link or the extension of an existing link to beyond 500m. The EM2500C can
sit as far as 500m from the head end, and communicate to another EM2500/ET1500C/ET1543C at distances of up to 500m and beyond. The
EM2500C includes a power jack and power supply for long links.
The EM2500C is housed in an industrial-grade anodized aluminum housing with mounting ears and has LEDs for upstream and downstream
link status, port link status, and POE status.
Features
* Product must be used in conjunction with compatible Etherstretch Transmitter and Receiver*
– Extends 10/100 Mbps Full Duplex Ethernet & PoE up to 500 meters over coax
– Multiple units can be daisy-chained for links longer than 500m
– Add new 10/100 IP port to any RG-59/RG-6 coaxial run
– Supports IEEE802.3at (25.5W) and IEEE802.3af (15.4W)
– Power port allows midspan power injection to extend run
– Fully Transparent to the Network, no MAC or IP addressing required
– Limited Lifetime Warranty
Compatible Products
Compatible Receivers: Accessories:
ER16500C Ethernet Surge Protection
Compatible Transmitters:
