EL4500C - Nitek


The Etherstretch™ ET1500CWS Outdoor Ethernet over Coax network extender-PoE Inserter with Surge Suppression is another of the IP Video Transmission Solutions from NITEK. The System includes a transmitter, surge suppression unit and a NEMA4X rated enclosure to house the transmitter and surge units. Operates with ER8500C or ER16500C Receiver Unit (purchase separately). Transmits IP cameras over coax and can quickly turn any ordinary RG59U coaxial cable into a high speed network communication & PoE path.

Product Description

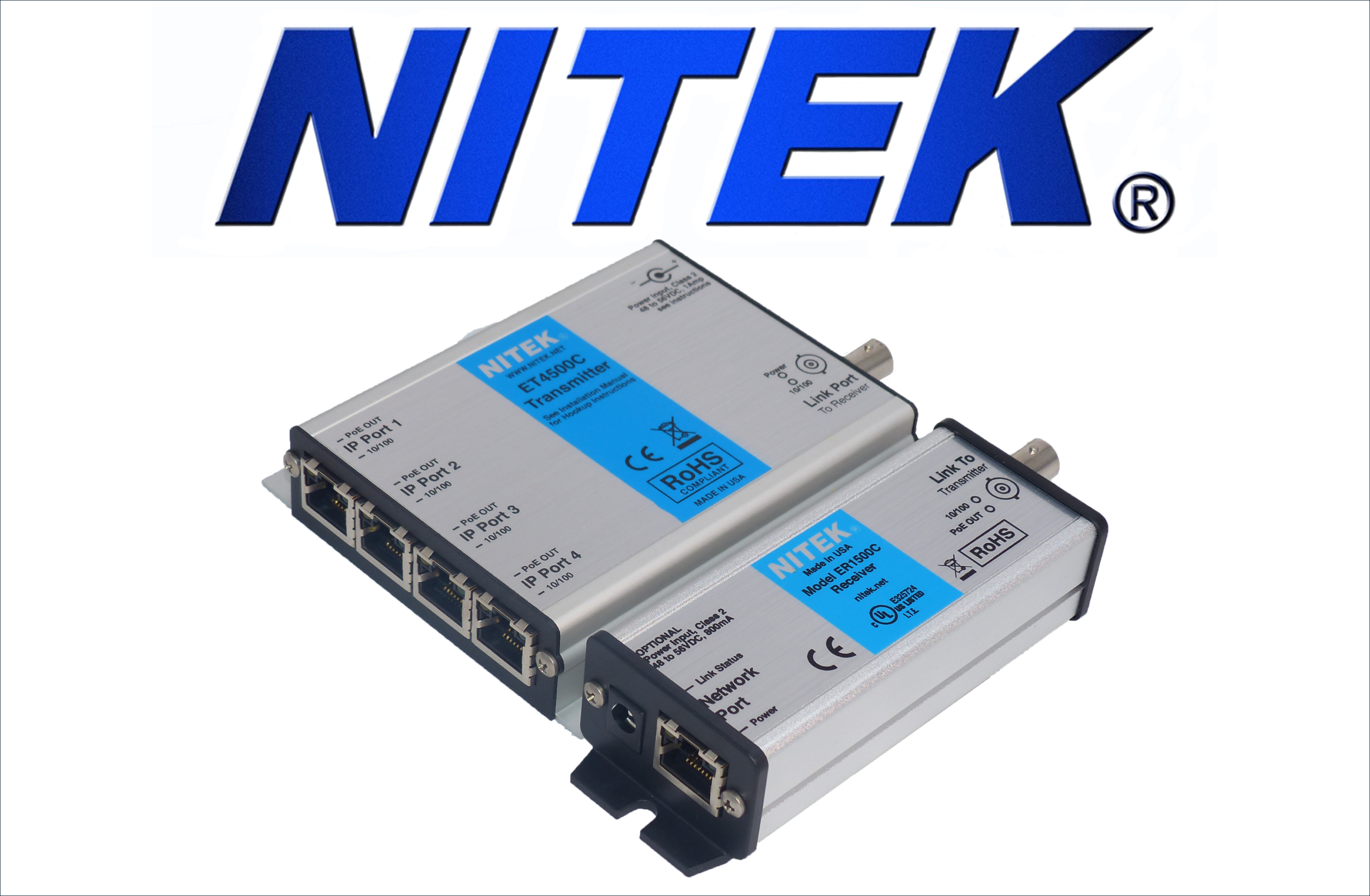

The EL4500C is another component of the Nitek cutting edge Etherstretch™ line. This Environmentally Hardened Etherstretch solution allows for the utilization of existing cable infrastructure (coax). With the addition of an external power supply, the transmitter can supply PoE power to operate 4 IP cameras or other network devices. The unit transmits data from the 4 IP network devices over the coax cable for distances up to 500 meters (1,600 feet). The EL4500C is a system containing a transmitter and a receiver unit that requires very little installation time and absolutely no set up or configuration. These units quickly turn ordinary RG59 coax cable into a high speed network communication and PoE pathway. The EL4500C is transparent to the network thus requiring no IP and MAC addressing. Simply connect your network devices to the IP Ports of the transmitter, connect the transmitter to the receiver and the system begins communicating. LED indicators show the status of network communication and PoE power. The EL4500C requires no network settings to be changed or adjusted.

The Nitek EtherStretch EL4500C extends network communications to overcome cable distance limitations offering connections to devices in locations traditional networking does not allow. The EL4500C is ideal for retrofitting existing installations. The units are constructed of industrial grade RoHS compliant plated aluminum which is finished with a corrosion resistant finish making it very durable.


  • Supports 4 network devices, including mega-pixel technology IP cameras
  • IP Network Extender transmits over coax up to 1,640 ft (500m)
  • Includes 4 Port Transmitter and Receiver units
  • Transparent to the Network
  • No setup required
  • Environmentally Hardened to meet NEMA TS-2 Specifications
  • Patent Pending USA and Europe Euro Pat App 2779641

Tech Specs

Size 1.0” x 4.0” x 4.9” including tabs & BNC (25 x 102 x 124mm)
Power Requirements 48 to 56Vdc, 1 to 5A Nitek PS48 Power Supply Included
Ethernet Connection [4] Auto Configuring 100BASE-TX Full Duplex
EtherStretch Link Connection [1] Coaxial BNC Connector
LED Indicators Link Status, Power, PoE Out, 10Mb or 100mb
Shipping Weight 3 lbs.
Mounting 0.20” Diameter (5.0mm)
Operating Temperature -40 to 75 degrees C/-40 to 167 degrees F
Environmental NEMA TS-2 (see spec sheet download)


EL4500C Specification Sheet Last Updated: September 14, 2017
EL4500C Installation Manual Last Updated: October 18, 2018
EL4500C Nema TS-2 Test Report Last Updated: September 14, 2017
