EL1500CP

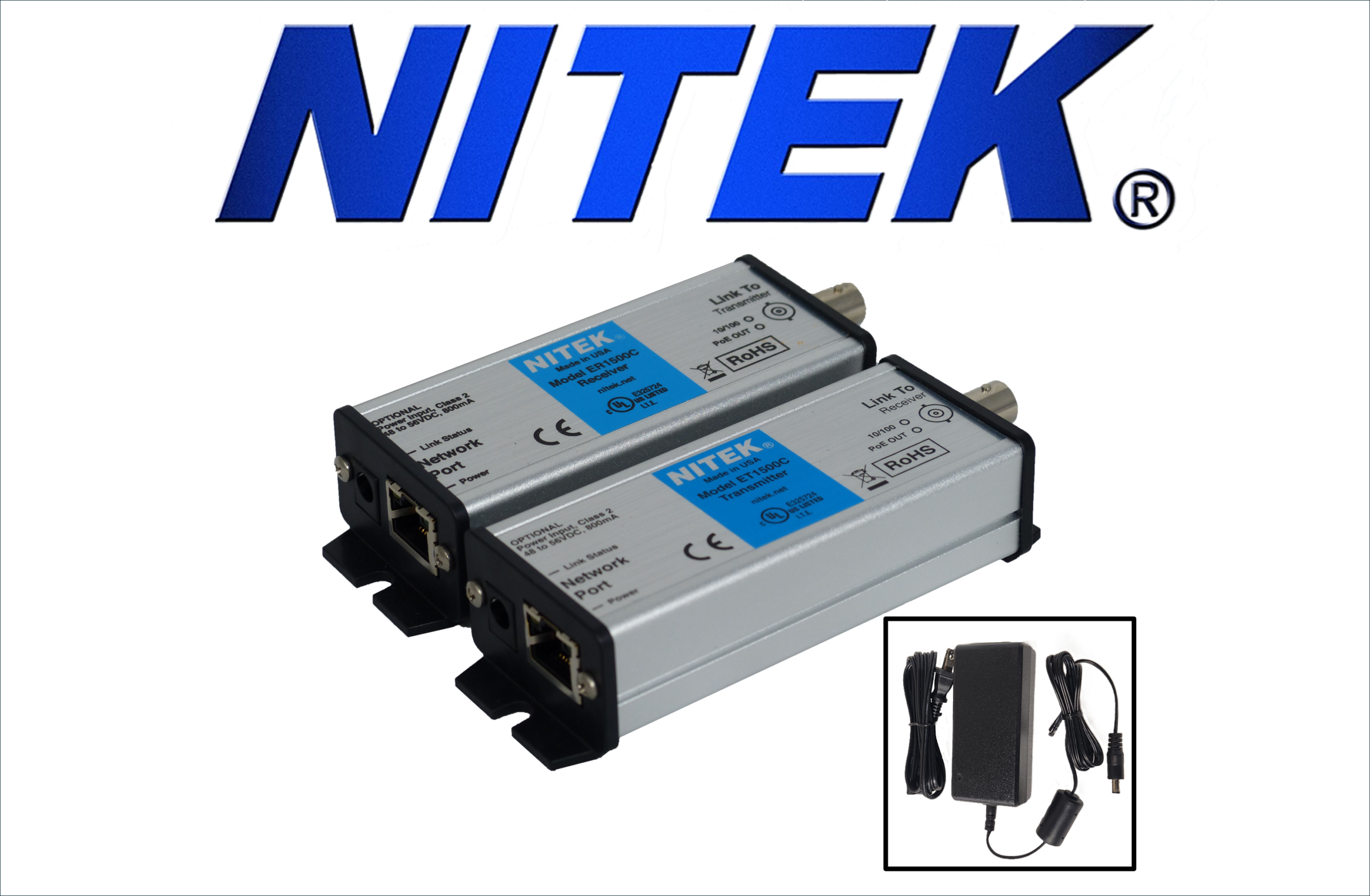

Single Channel, PoE+ over Coax Transmitter and Receiver set with DC Power Supply Included
Product Description
The EL1500CP is a bundle that combines the standard EL1500C to include a PS48 DC power supply for PoE+ Insertion at either the Receiver or Transmitter.
Features
- IP Network Extender transmits over coax up to 500m (1640′)
- Extends PoE to Transmitter and IP cameras or Network devices
- Includes ET1500C Transmitter and ER1500C Receiver units
- DC Power Supply included for PoE+ injection
- Environmentally Hardened to meet NEMA TS-2 specifications
- LED indicators for network signals, link status and power
- Lifetime Warranty
- Made in the U.S.A.
Tech Specs
| Size | 1.1″H x 1.6″W x 4.93″D |
| Power Requirements | PoE (IEEE 802.3af or at) or PS48 Power Supply |
| Ethernet Connection | [1] Auto Configuring 10 / 100 RJ45 port |
| EtherStretch Link Connection | [1] Coaxial BNC Connector |
| LED Indicators | Link Status, Power, PoE Out, 10Mb or 100mb |
| Shipping Weight | 3 lbs. |
| Mounting | Two 3?8 inch mounting slots |
| Operating Temperature | -40 to 75 degrees C/-40 to 167 degrees F |
| Environmental | NEMA TS-2 (see spec sheet download) |
Variants: -S1, -W1, -WS1, -S2, -W2, -WS2
