EL1500UP

Ethernet and PoE+ Extender over CAT5e UTP Cable Transmission Set

Product Description

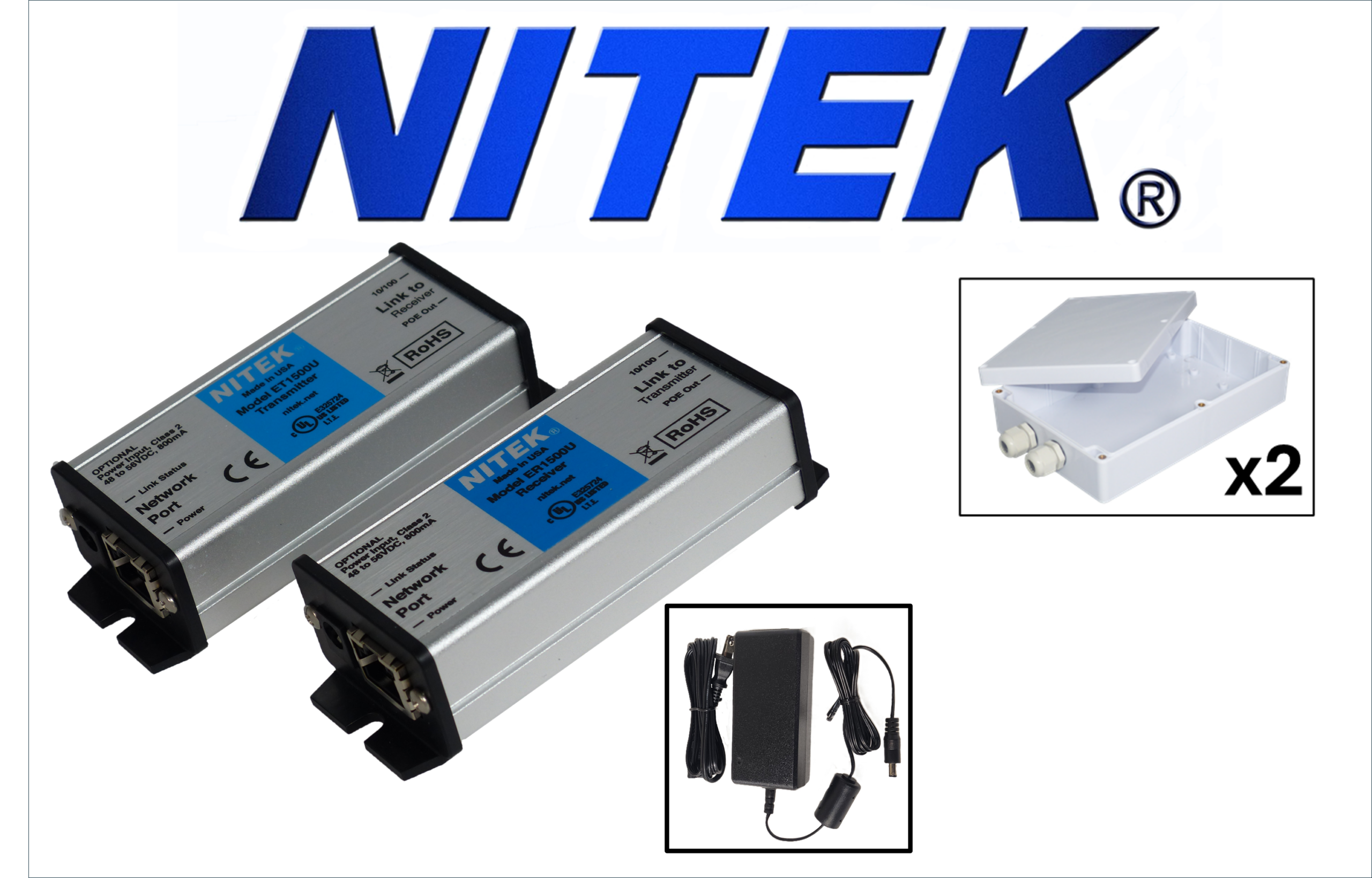

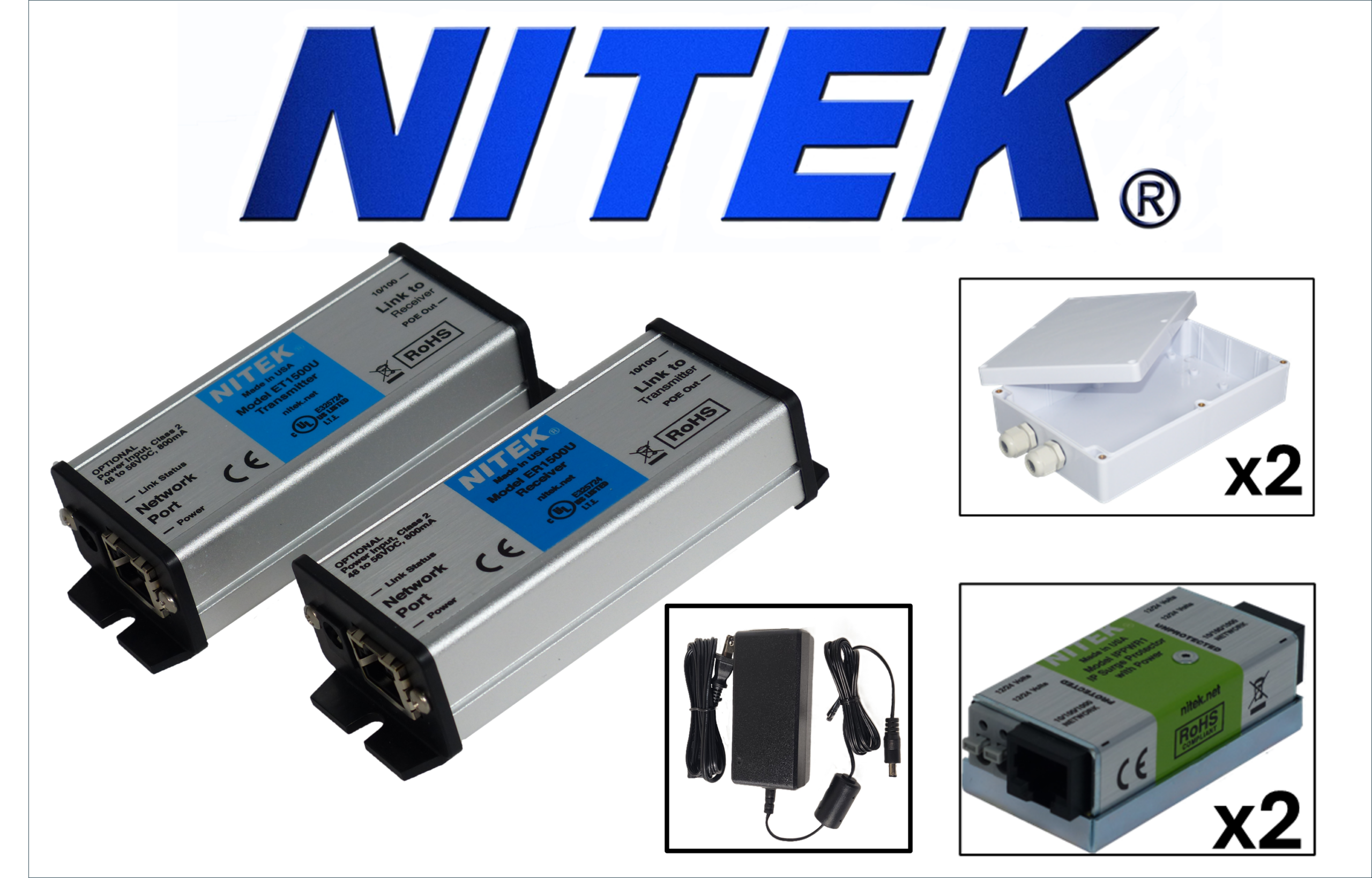

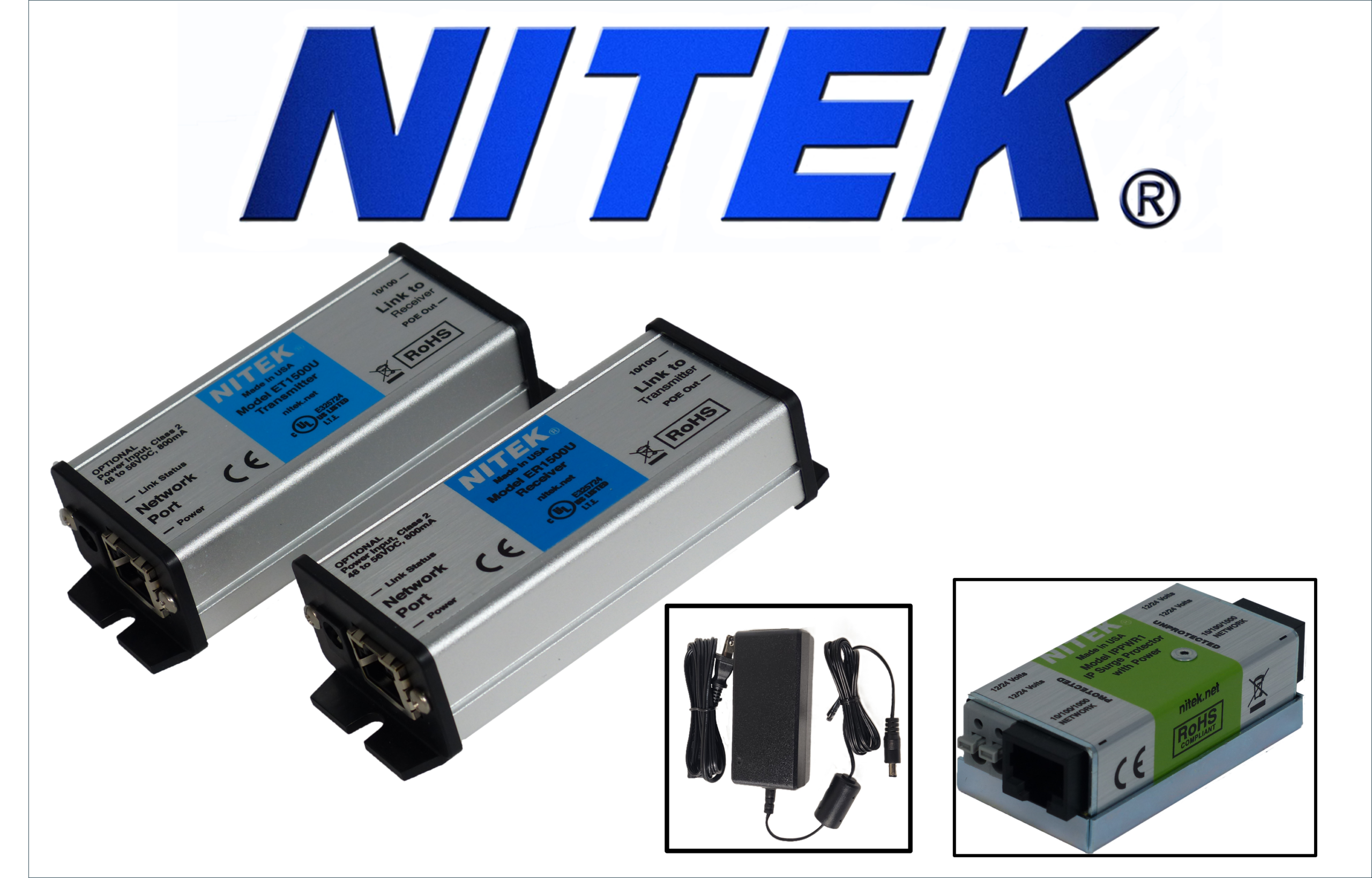

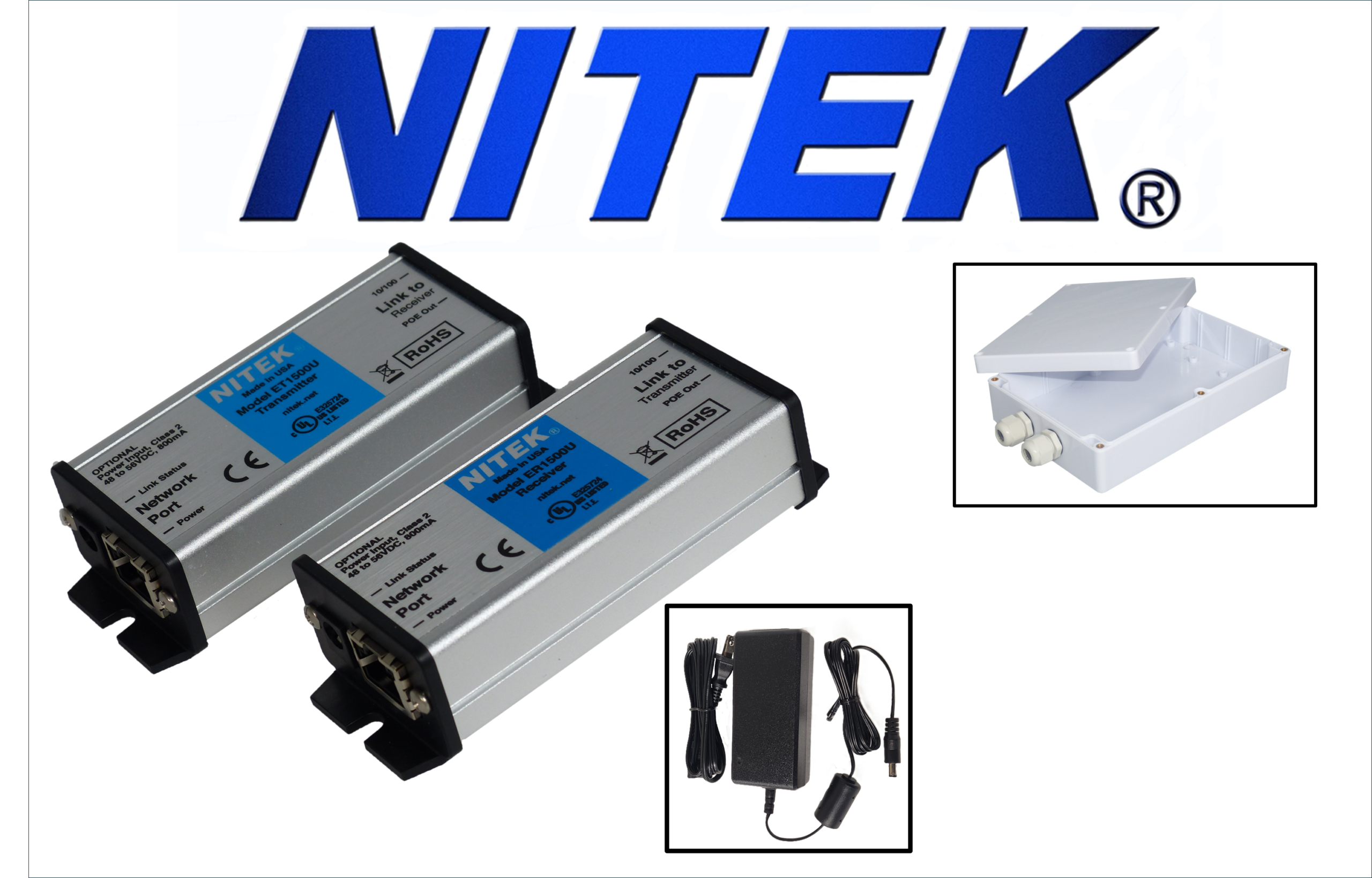

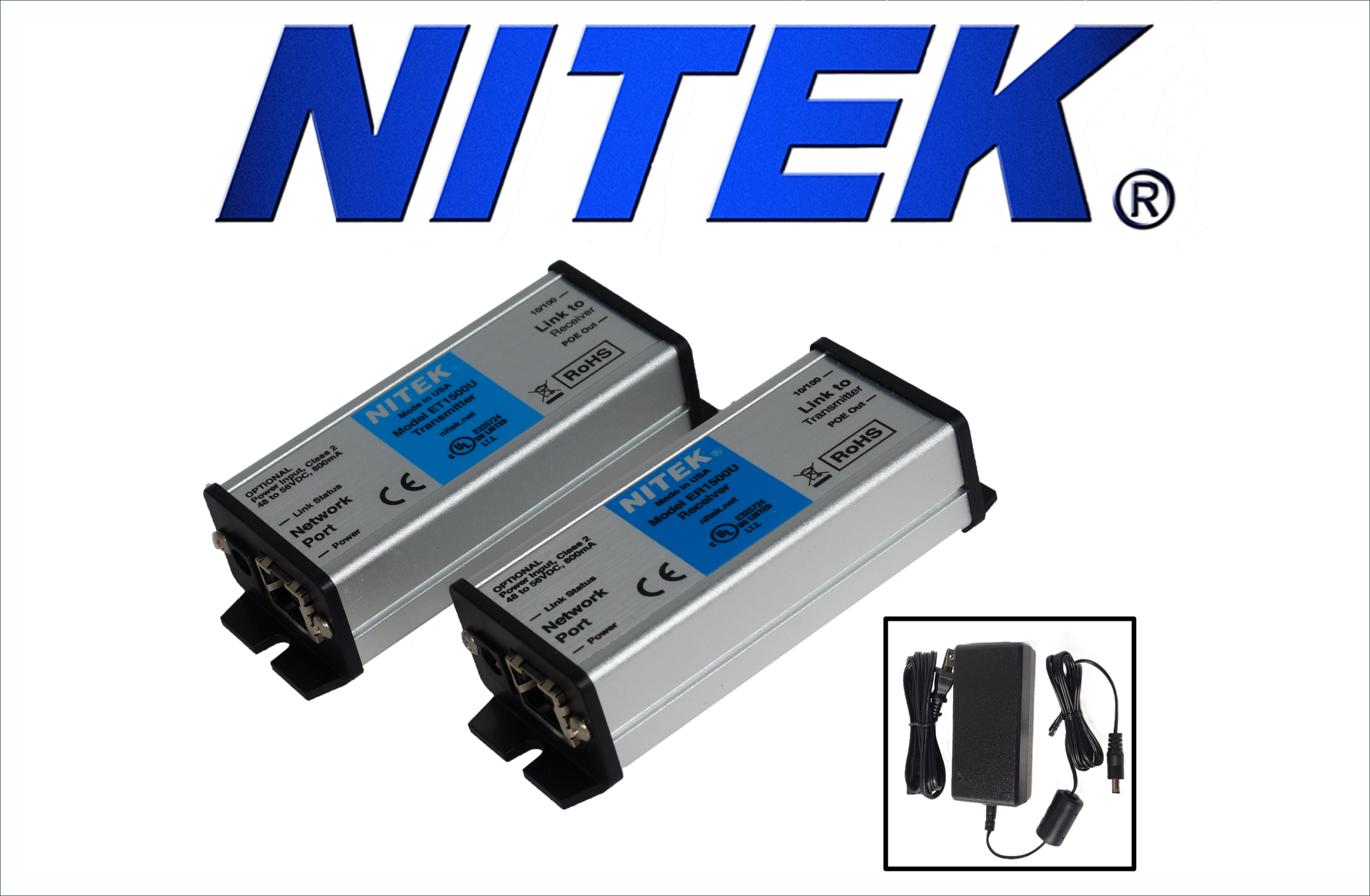

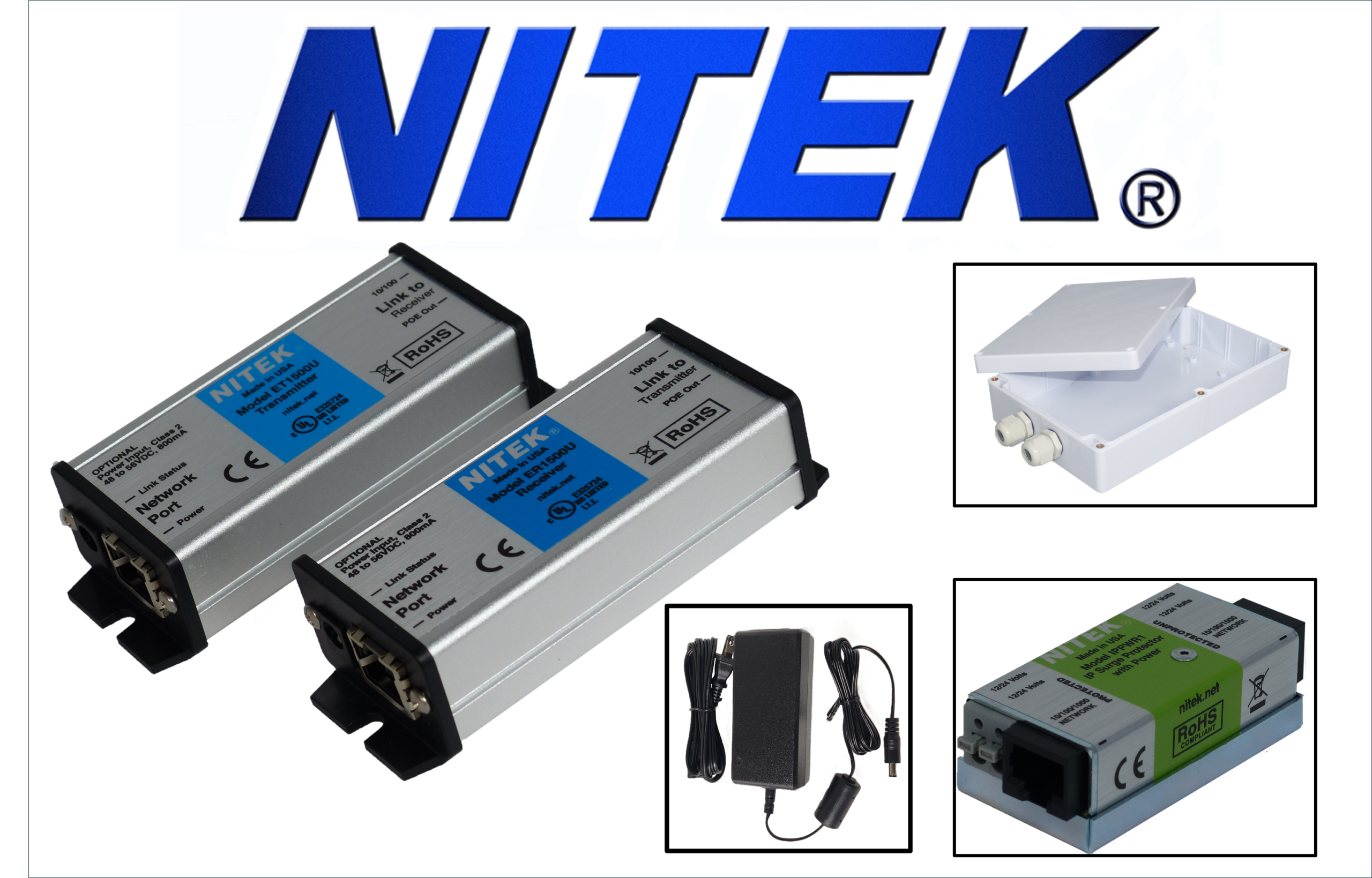

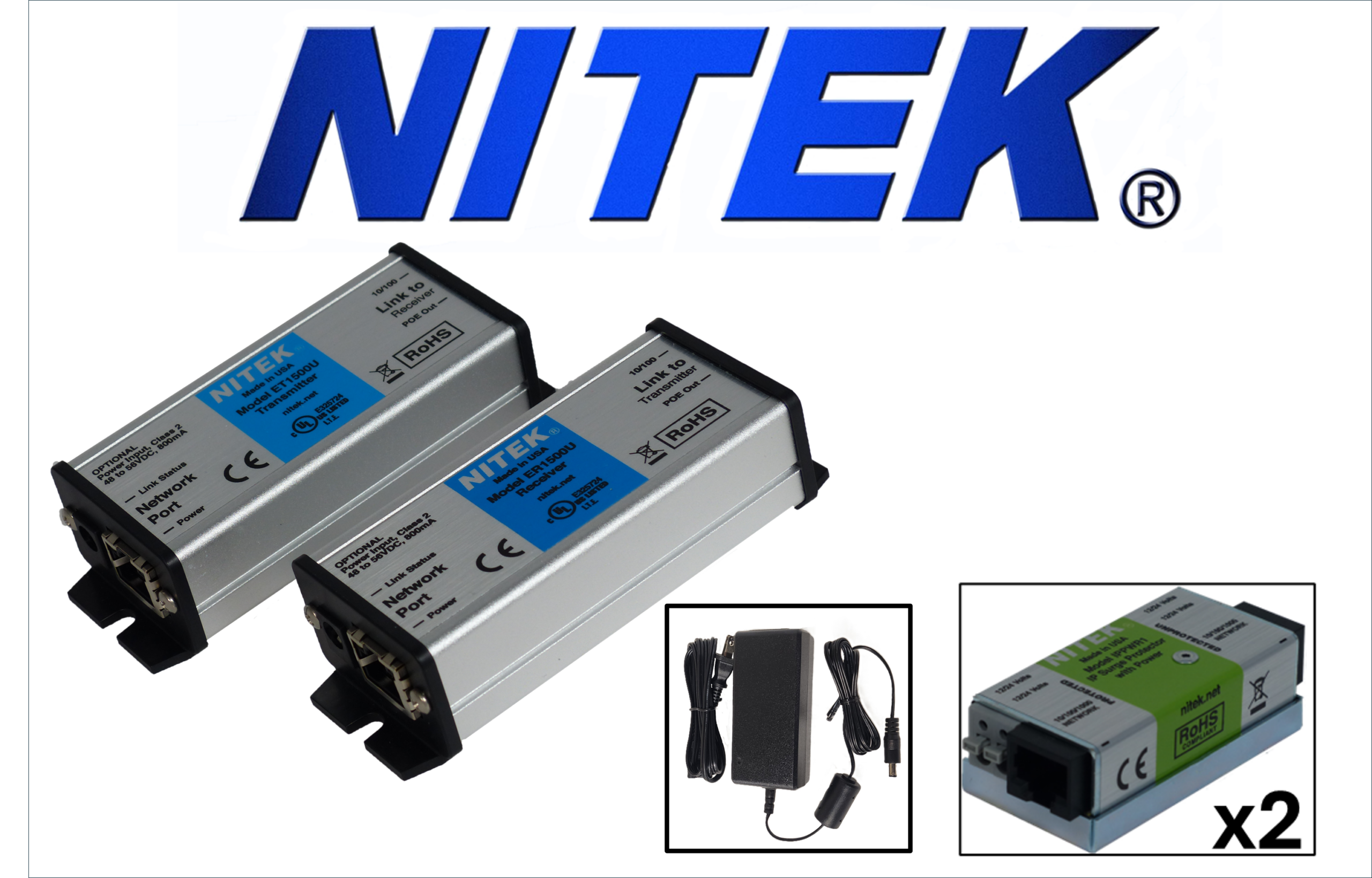

Single Channel Transmission set for IP and PoE+ extension over Cat5 or better 4-pair cable. The set includes the ER1500U Receiver and ET1500U Transmitter and PS48 DC Power Supply for PoE+ Insertion

Features

Transmits up to distances of 600m
Supports any network device, including IP cameras
Includes ET1500U Transmitter and ER1500U Receiver units
Supports 10/100 and PoE over category rated cables
Fully transparent to the network
Easy to install, no set up required
Supports mega-pixel technology
LED indicators for network signals, link status and power
Made in the U.S.A.

Tech Specs

Dimensions (WxHxD)	17mm x 28mm x 40mm / 4.6″ x 1.1″ x 1.6″
Power Requirements	PoE (IEEE 802.3af or at) or PS48 Power Supply
Ethernet Connection	[1] Auto Configuring 10/100 RJ45 port
EtherStretch Link Connection	[1] RJ45 port
LED Indicators	Link Status, Power, PoE Out, 10Mb or 100mb
Shipping Weight	0.32kg / 0.7lbs.
Mounting	Two 3/8 inch mounting slots
Operating Temperature	-40 to 75 degrees C/-40 to 167 degrees F
Environmental	NEMA TS-2 (see spec sheet download)
