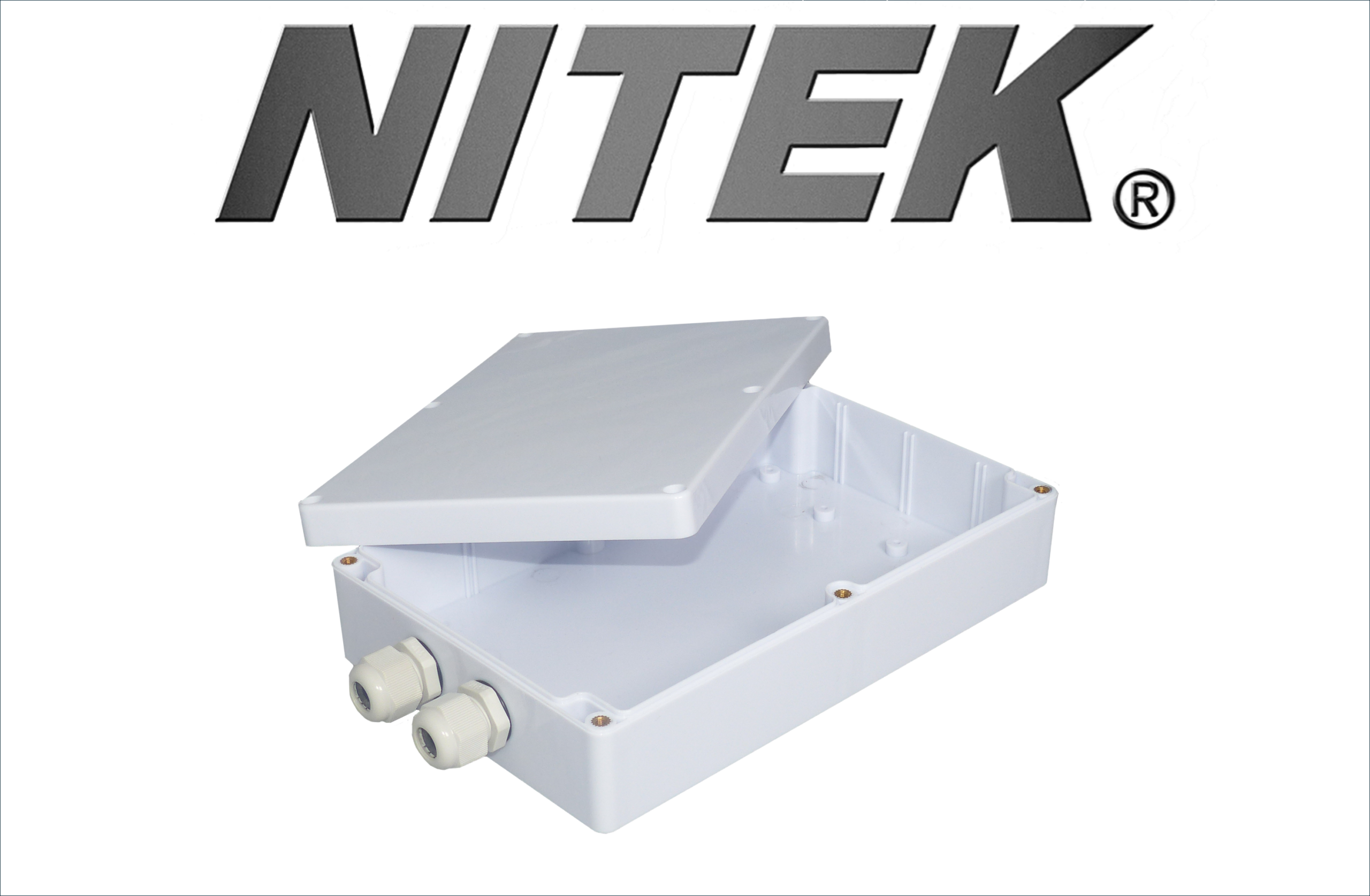

The WP1325 is an Outdoor Enclosure Kit for Nitek Ethernet Extender products.
Product Description
The WP1325 is an Outdoor Enclosure Kit for Nitek Ethernet Extender products. The Kit includes a NEMA 4X rated Weatherproof, Polycarbonate, high-impact ABS molded enclosure, a Polycarbonate, high-impact ABS molded top with a Neoprene sealing gasket, 4-Stainless Steel screws to secure the top to the box and 2-UL94V-2 weatherproof nylon cable seals to maintain NEMA 4 or 4X ratings at the cable entry points. The cover attaching screws are located outside the sealing area to prevent ingress of moisture and dirt. Cover screws fasten to threaded brass inserts.
Features
• Includes NEMA 4X rated outdoor housing and cover
• Cover assembly includes Neoprene gasket to provide weatherproof seal
• Cover attaching screws are M-4 Stainless Steel
• Designed to house Models EE328, EL1500 or ET1500 Series Transmitter Units
• Nylon hex nut cable entry seals are designed to pass coax or standard category cables
Tech Specs
| NEMA Rating | 4X Rated Outdoor Housing |
| Classifications | IP65 of IEC529 and NEMA 1,2,3,4,4X, 12 and 13 |
| Attaching Screws | M-4 Stainless Steel, Non-Magnetic |
| Attachuing Facility | Threaded Brass Inserts |
| Temperature Range | -40 to 80C |
| Shipping Weight | 3 lbs |
Downloads
WP1325 Specification Sheet Last Updated: September 14, 2017
