VB41-x8

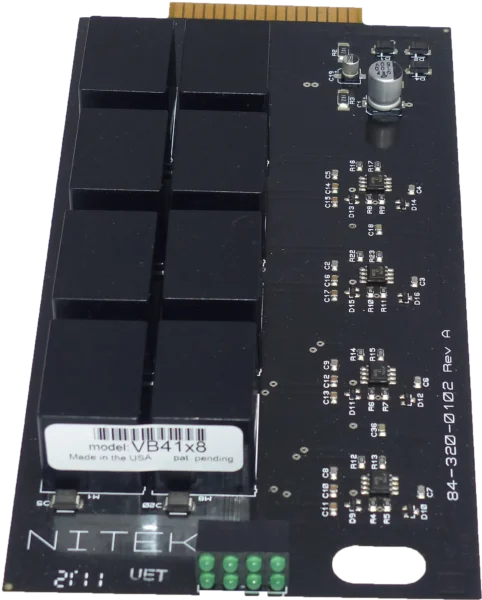

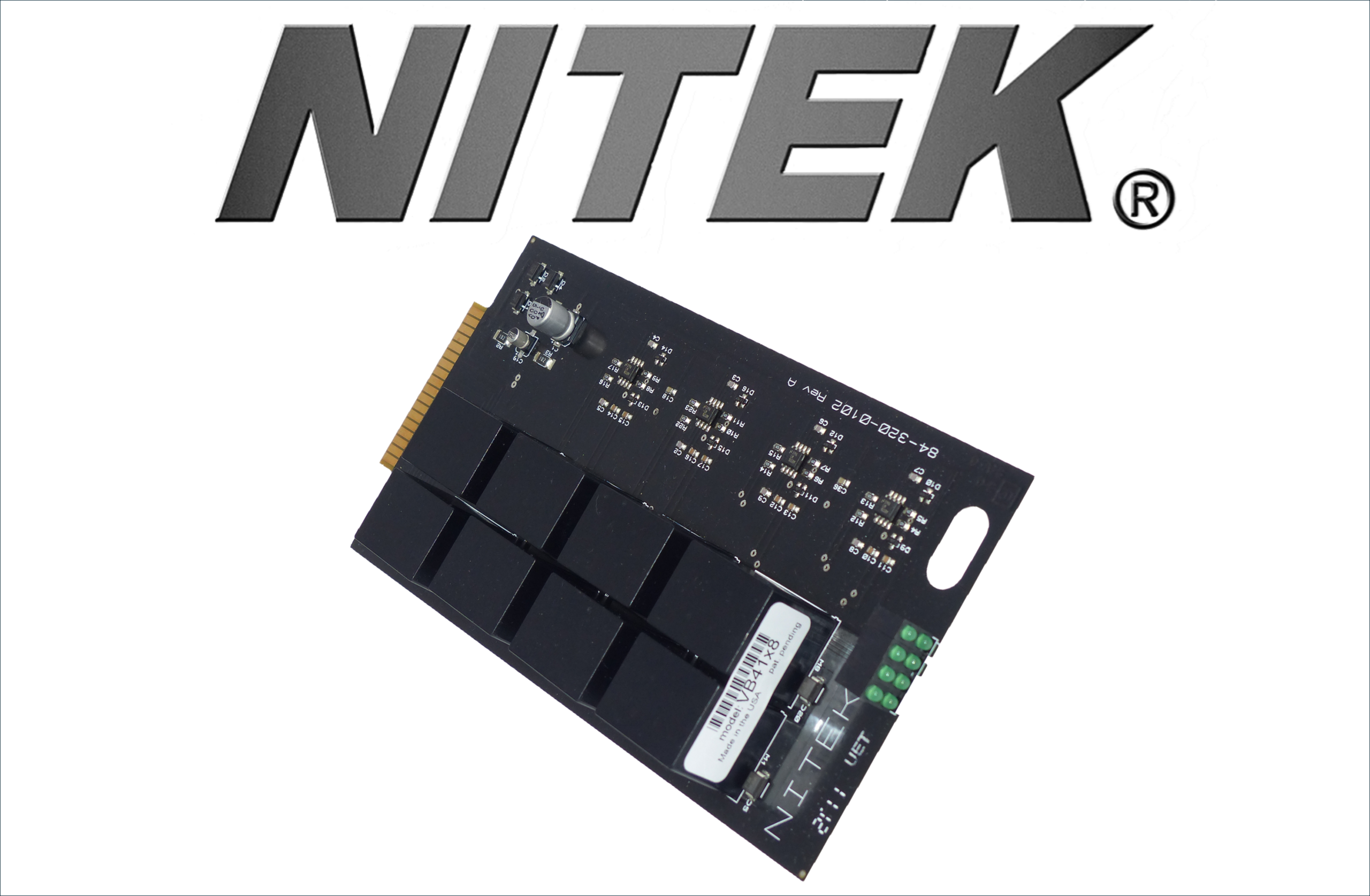

Nitek VB41X8 8-Balun Transceiver Card with Surge Suppression, 225m
Product Description
The VB41x8 modular card is designed for use with the modular rack system. Each card has 8 video balun units, built-in surge protection and video loss detection. The Nitek video baluns are transmission devices that provide a low cost means of sending live video over unshielded twisted pair, point-to-point wiring for distances of up to 750′ (225m). The Nitek video baluns are also compatible with all of the up-the-coax control systems.
Features
- Quality video over ordinary twisted pair cable
- Immunity to noise and interference
- Built-in surge suppression
- Built-in video loss detection
- Video and PTZ over a single pair (with “up-the-coax” systems)
- RJ45 or push terminals for easy connection
Tech Specs
| Size | 1 card slot |
| Twisted Pair Input | (8) Balenced low voltage current loop |
| Output | (8) 1vpp composite video monochrome or color |
| Common Mode Rejection | 60dB |
| Video Format | RS170, NTSC, PAL, SECAM, CCIR (Color or B/W) |
| Operating Frequency | DC to 10 MHz |
| UTP Category | Unshielded Category cabling |
| Wire Size | 26 to 12 AWG unshielded twisted pair |
| Transient Immunity | Built-in |
| Shipping Weight | 1 lb |
