VB37-F

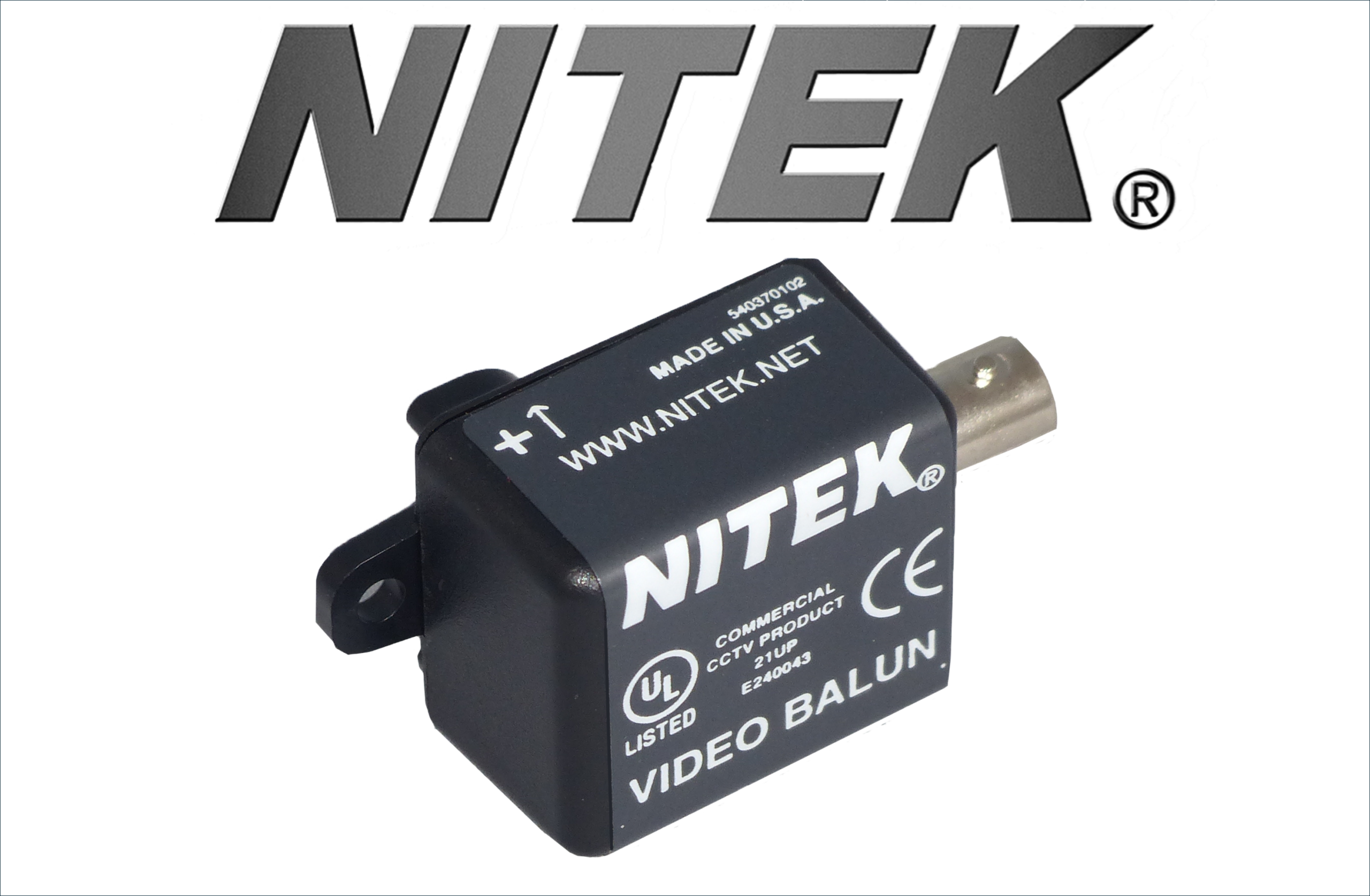

The VB37F is a passive UTP high noise immunity video balun for twisted pair transmission of CCTV video. The VB37F is a “heavy duty’ design with two screw terminals for UTP connection and a female BNC for coax connection. This passive UTP video balun operates with other passive video baluns, transceivers or active receivers.
Product Description
The VB37F is a “heavy duty’ design with two screw terminals for UTP connection and a female BNC for coax connection. This passive UTP video balun operates with other passive video baluns, transceivers or active receivers. The VB37 series is available in the F model (female BNC) and the M model (male BNC). The VB37F UTP transceiver provides a low cost means of sending live video over unshielded twisted pair, point-to-point wiring for distances of up to 750 feet (225 meters) with other CCTV balun transceivers, and up to 3,000 feet (900 meters) with the TR560 single channel receiver and model 56 Series hubs. The VB37F is compatible with all the “up-the-coax” control systems. A basic system uses (2) video balun transceivers, one at each end of a twisted pair of wires. These units are intended for use over existing in-house telephone wiring, Category 5 wiring or other twisted pair cable runs to provide a convenient, cost-effective alternative to coax.
Features
- Works with any HD TVI/CVI/AHD or NTSC and PAL
- Immunity to noise and interference
- Video and P/T/Z over a single pair (with “up-the- coax” systems)
- Passive devices—do not require power
- Weather resistant design
- Mounts directly to camera or video source
Tech Specs
| Transceiver Unit | |
| Size | 1.3″H x 2.0″W x .95″D |
| Power Requirements | NONE REQUIRED |
| Input | 1 vpp composite video Monochrome or Color |
| Output | Balanced low voltage current loop |
| Shipping Weight | 1 lb for single unit |
| System (2 Transceivers Required) | |
| Video Format | RS170, NTSC, PAL, SECAM, CCIR (Color or B/W) |
| Video Input | 1 vpp composite video monochrome or color |
| Operating Frequency | DC to 10 MHz |
| Common Mode Rejection | >60 dB typ. |
| Temperature Range | -40 degrees C to +85 degrees C |
| Humidity Range | 0 to 98%, non-condensing |
| Transient Immunity | 6,000 V 1.2uS x 50 uS per ANSI / IEE 587 C62.41 B3 3,000 A 8uS x 20 uS when ground screw terminal is connected to earth-ground |
| Enclosure Material | Black ABS flame retardant plastic |
| Twisted Pair Connection | Screw terminals |
| Wire Spec | 26 to 12 AWG Unshielded Twisted Pair (UTP) |
| DC Loop Resistance | 51 Ohms/1,000 feet (max) (51 Ohms/304 meters) |
| Normal Capacitance | 17pF/ft. |
| Impedance | 100 Ohms +/- 20% |
| UTP Category | 2 or better |
