IPMRJ-1
Home IPMRJ-1
IPMRJ-1

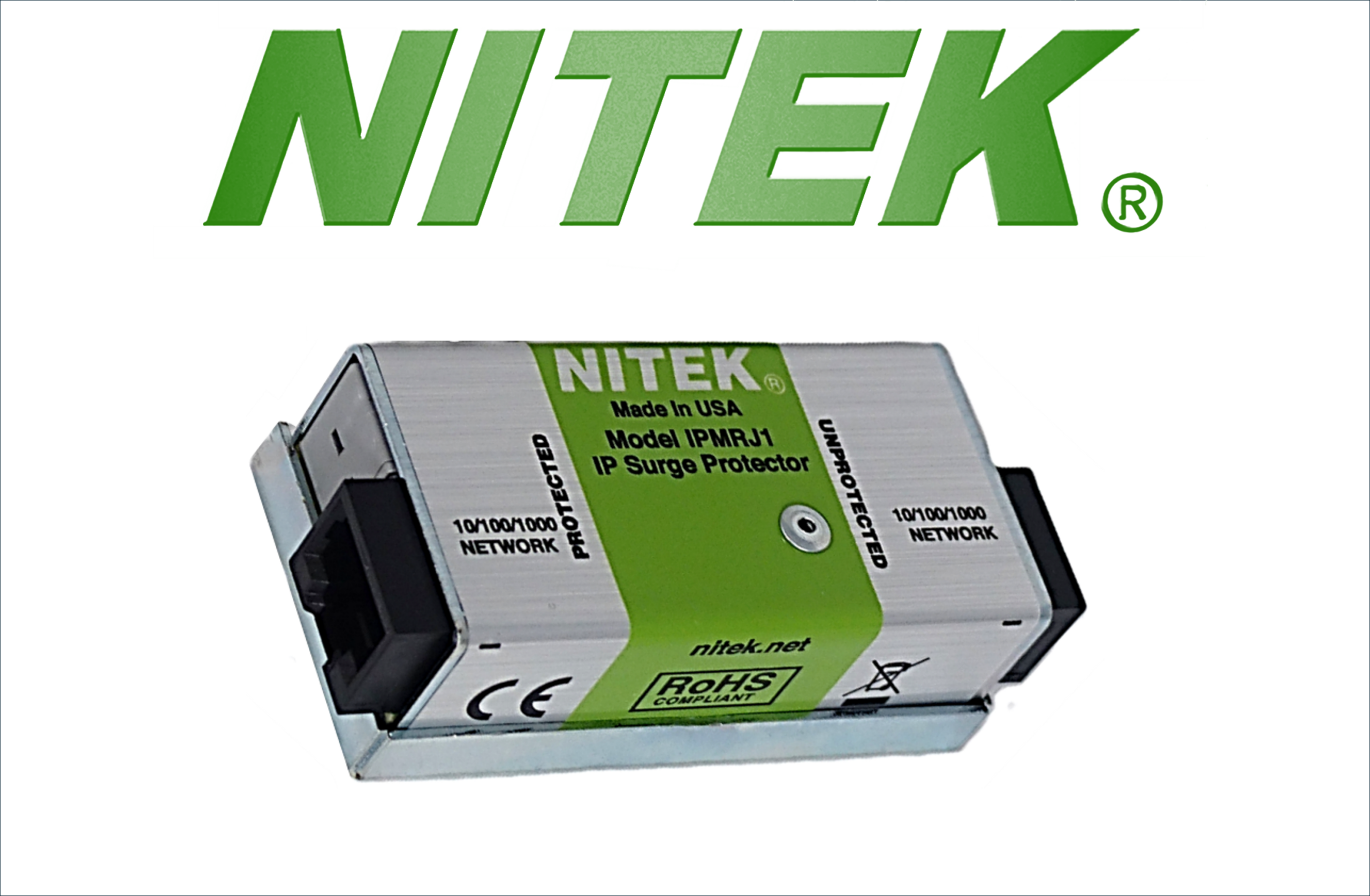

The IPMRJ1 is a single channel, in-line, IP camera and PoE power surge protector for one 10/100/1000 ethernet port.
Product Description
The IPMRJ1 is a single channel, in-line, IP camera and PoE power surge protector for one 10/100/1000 ethernet port. The unit has standard RJ45 jacks for easy connection to the network device. The IPMRJ1 is ideal for small or restricted spaces. The Unit provides a heavy duty, single point ground connection and is easy to install in minutes. The IPMRJ1 is recommended for use with the Etherstretch™ family of products, where surge protection is a required. The IPMRJ1 is covered by a limited Lifetime Warranty.
Features
- Insertion loss < 0.2 dB
- Heavy single point ground
- Easy to install
- Lifetime warranty
Tech Specs
| Size | 0.9″ H x 2.5″ W x 1.8″ D |
| Power Requirements | None required |
| Network Connection Method | RJ45 jack connectors |
| Impedance | 100 ohms |
| Temperature | -40C to +85C |
| Frequency | DC to 10 MHz |
| Shipping Weight | 1 lb |
