IPGPU-1

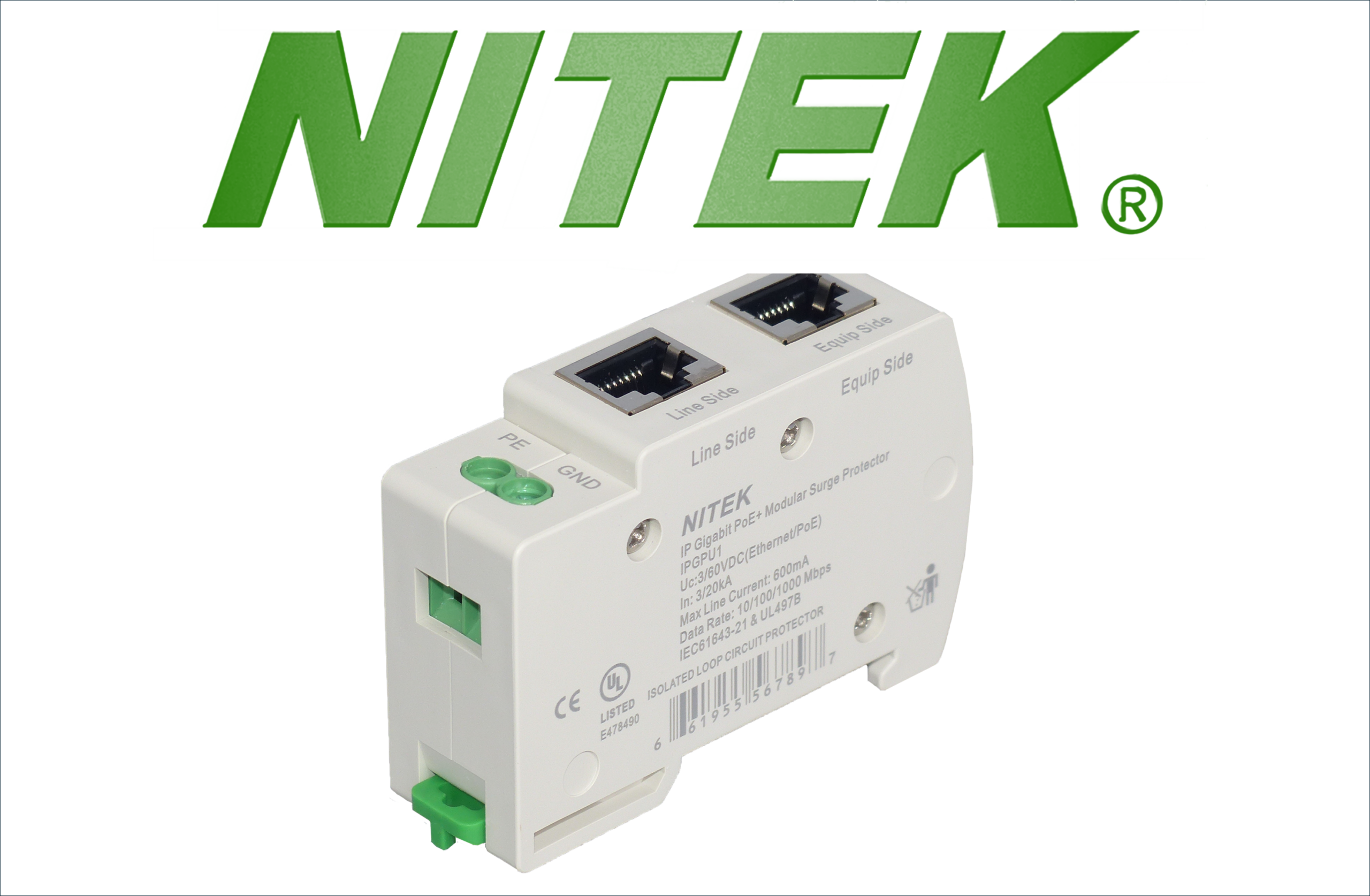

The IPGPU1 is a single port in-line, modular 10/100/1000 Ethernet & PoE+ surge protector for IP cameras, tele-communications and LAN/WAN equipment.
Product Description
The IPGPU1 is a single port in-line, modular 10/100/1000 Ethernet & PoE+ surge protector for IP cameras, tele-communications and LAN/WAN equipment. The scalable modular design enables one or more units to be installed in unison to provide protection in a variety of applications for rack mounted network equipment. The RK1GP rack panel enables this process and is sold separately. The IPGPU1 is designed to provide surge protection via a single set of 10/100/1000 Ethernet ports. The unit has standard RJ45 jacks with dual point screw earth ground connections for easy and quick installation. The IPGPU1 is recommended for use with the Etherstretch™ family of products, where surge protection is required. The IPGPU1 is covered by a limited Lifetime Warranty.
Features
- Protects IP data and PoE circuits
- Support mega-pixel IP cameraS
- Heavy dual point grounds
- Din Rail Design
- Single channel modular design
- Lifetime Warranty
- UL Certified
Tech Specs
| Size | 3.0″ H x 1.6″ W x 2.0″ D |
| Power Requirements | None required |
| Network Connection Method | RJ45 jack connectors |
| Ground Connection Method | Screw terminals – rated to 8 amps |
| Video Insertion Loss | <0.2dB |
| Impedance | 100 ohms |
| Temperature | -40C to +80C |
| Frequency | DC to 10 MHz |
| Shipping Weight | 1 lb |
