Active/Active Video Balun Transmission Set
Product Description

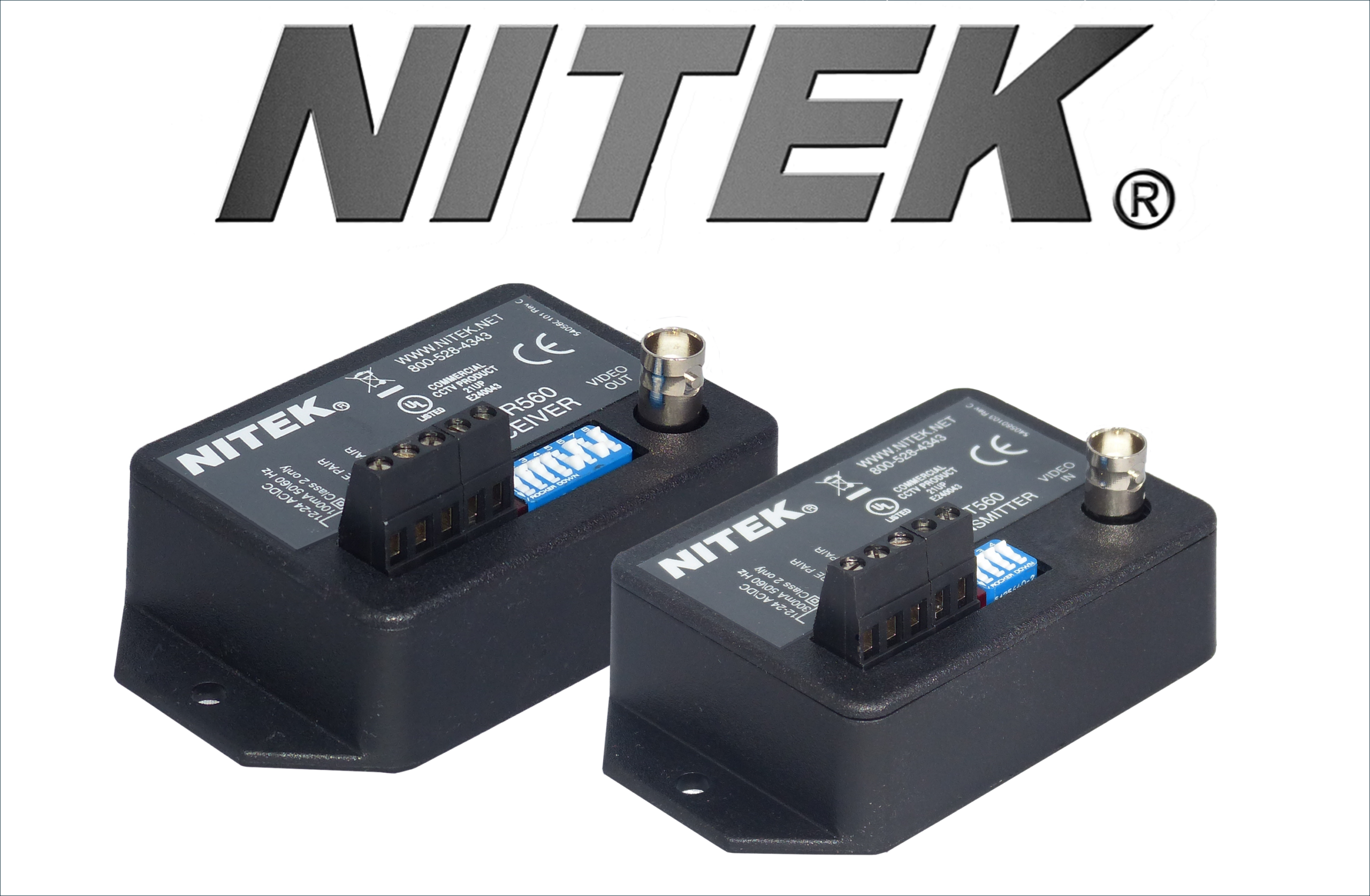

The EX560 is an Active/Active Video Balun Transmission Set that includes a TR560 Active Balun Receiver and TT560 Active Balun Transmitter to achieve transmission distances of up to 6,000 feet.
Features
- High resolution color or monochrome video
- Easy to install
- Weather resistant design
Tech Specs
| Size w/mounting tabs | 1.6″H x 4.3″W x 2.4″D |
| Power Requirements | 12 to 24 VAC or VDC @ 100mA
(wall transformer provided with unit) |
| Input | Balanced low voltage current loop |
| Output | 1 vpp composite video
monochrome or color |
| Common Mode Rejection | >70dB |
| Video Format | RS170, NTSC, PAL, SECAM, CCIR (Color or B/W) |
| Operating Frequency | DC to 10 MHz |
| Shipping Weight | 2 lbs |
| Temperature Range | -20 degrees C to +65 degrees C |
| Humidity Range | 0 to 98%, non-condensing |
| Enclosure Material | Black ABS flame retardant plastic |
| Twisted Pair Connection | Screw terminals |
| Wire Spec | 26 to 12 AWG unshielded twisted pair (UTP) |
| DC Loop Resistance | 51 Ohms/1,000 feet (51 Ohms/300 meters) (max) |
| Normal Capacitance | 17pF/ft. |
| Impedance | 100 Ohms +/- 20% |
| UTP Category | 2 or better |
Variants: TR560; TS560; EX560
