ER16500U

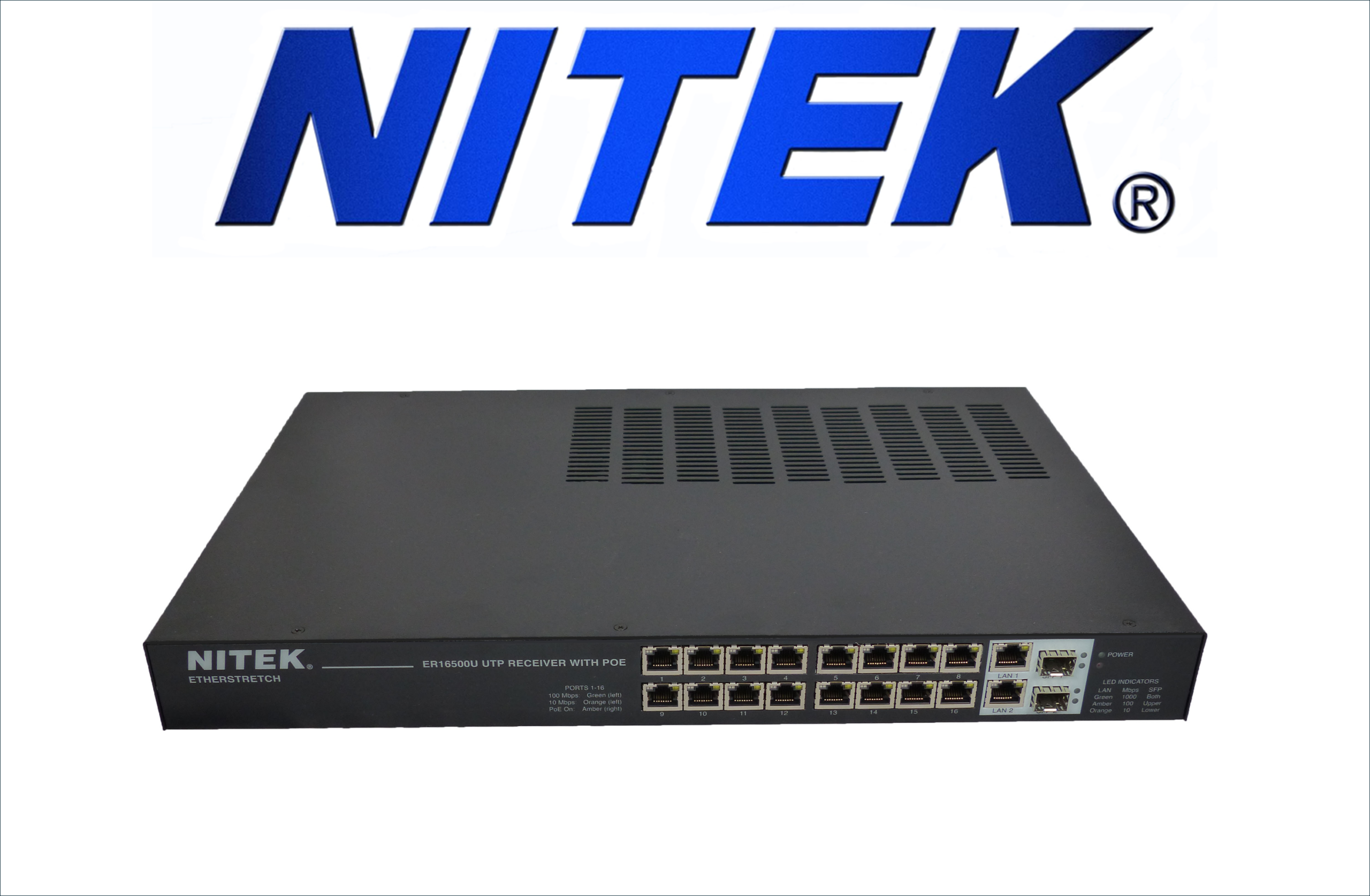

Nitek 16 Port Ethernet Switch and Network PoE+ Extender
Product Description
The ER16500U is a multi-port Ethernet switch and PoE+ extender for IP video cameras. This Layer 2 PoE+ switch with Gigabit LAN and SFP connections operates as a standard switch for all Ethernet devices up to 100 meters. When used in conjunction with the ET1500U transmitter unit (sold separately) operating distances can be extended to 600 meters (1968 feet). This makes it ideal for mixed use applications where equipment can be under 100 meters or up to 600 meters. It provides 802.3AT level (25.5 watts) for PoE+ powered devices up to 300 meters and greater than 802.3AF level power to 600 meters. (See PoE wattage chart for specifics.) Being a fully functioning Layer 2 switch, it easily integrates into standard network infrastructure.
Features
- Remotely powers network devices and transmits IP data over network category cables up to 600 meters/1968 feet
- Includes a built-in power source for all connected devices
- SFP ports support Fiber interfacing
- Short circuit, over-current and over-voltage protection
- Supports IEEE802.3af (15.4W) and IEEE802.3at (25
Tech Specs
| Network Output Port | 2 RJ45 Connectors, 1 Gigabit each |
| SFP Port | 2 SFP ports for 1 Gigabit each |
| Link Port | 16 RJ45 Connectors |
| System Latency | <1mS over 1000ft CAT 5e |
| Dimensions | 1 RU x 304mm D / 12.0” D |
| Operating Temperatures | 0° to 52° C / 32° to 125° F |
| Shipping Weight | 5,4kg / 12 lbs |
| Shipping Dimensions | 457mm x 609mm x 215mm / 18”W x 24”H x 8.5”D |
| Power Requirements | IEC380 connector – 110-240VAC/50-60Hz/640Watt Max |
| LED Connectivity Indicators | Link Status, Power, PoE Out, 10/100/1000Mb |
| Mounting | Standard rack mounting |
| BTU rating | 300 Btu/h |
| Humidity | Up to 95% non-condensing |
| Total Power Output | 500 watts Internal |
| PoE Capabilities | Compliant w/ IEEE 802.3af & IEEE 802.3at standards per port |
Variants: ER8500U; ER16500U
