ER16500C

Product Description

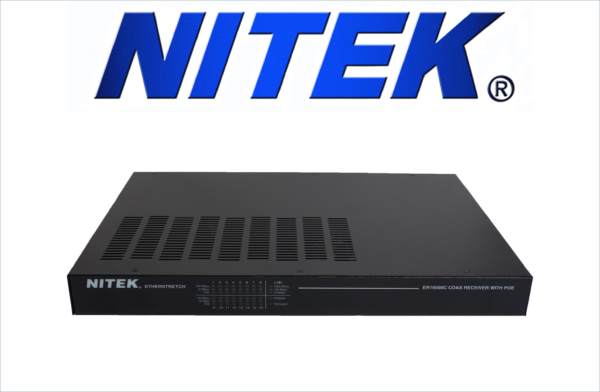

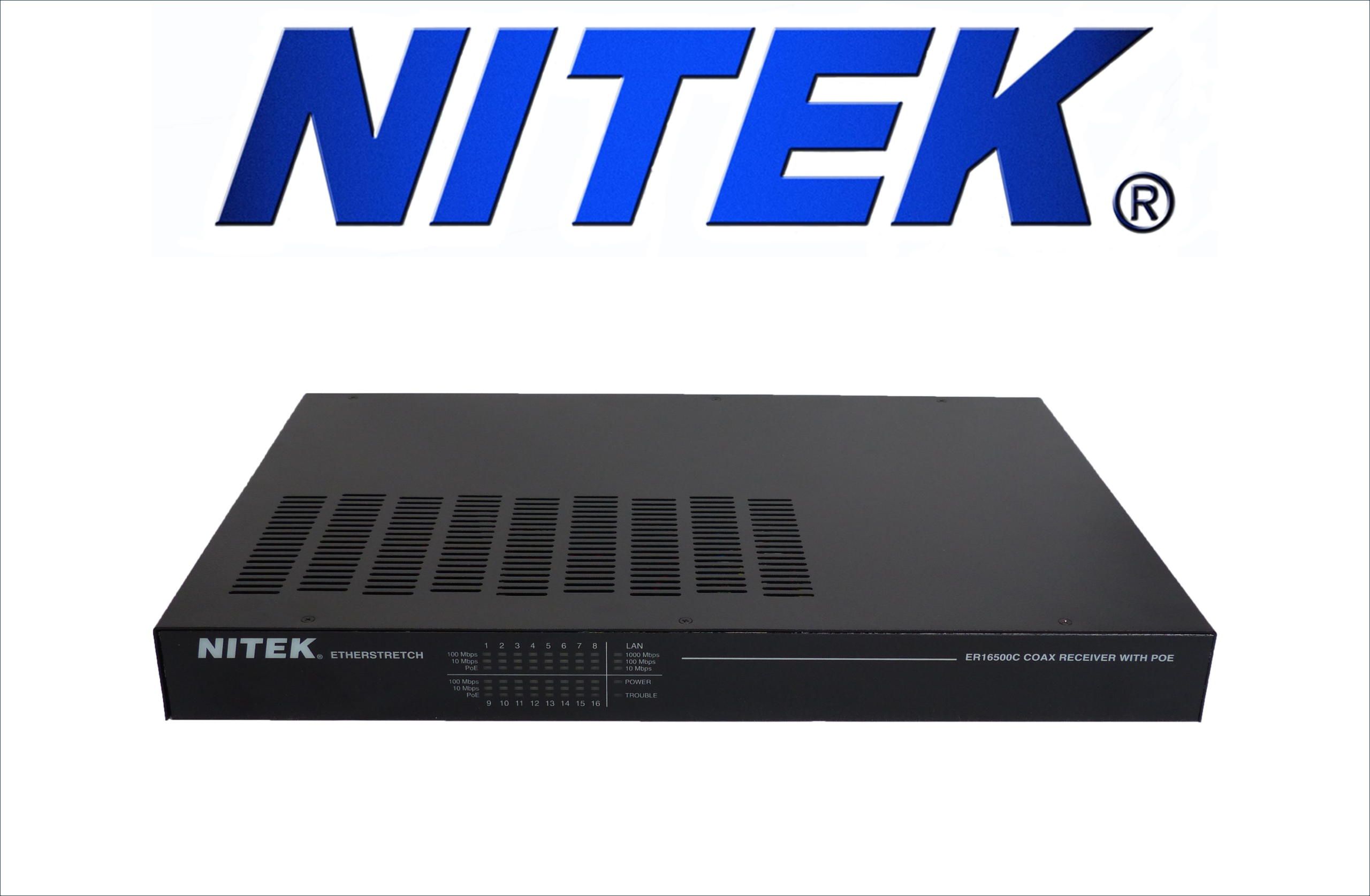

The Nitek ER16500C Etherstretch™ Ethernet Extender over Coax multi-port network extender-Gigabit PoE Switch is a Receiver unit that operates with 1 to 16 ET1543C Transmitter units (sold separately). The Etherstretch™ solution allows for the utilization of existing coaxial infrastructure to both transmit IP cameras and other network devices and to power them over the coax as well. The ER16500C Receiver and ET1543C units comprise a system which can transmit IP cameras over coax and can quickly turn any ordinary RG59U coaxial cable into a high speed network communication & PoE path. When operating over RG59U coaxial cable, the coax network extender system can operate for distances of up to 500 meters (1,640 feet). The ER16500C coax ethernet extender receiver along with the ET1543C transmitters require very little installation time & absolutely no set up or configuration. The System is transparent to the network and has no IP or MAC addressing. Simply connect your network devices to the network ports of the transmitter and receiver along with existing cabling and the system begins communicating. LED indicators show the status of network communication and PoE power.

An internal power supply in the ER16500C Receiver provides PoE to the system. The Etherstretch™ coax network extender system extends network communications to overcome cable distance limitations offering connections to devices in locations traditional networking does not allow.
