EL1551U

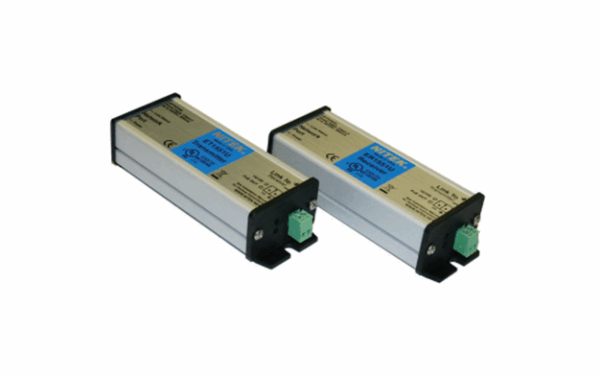

he EL1551U is a transmitter-receiver system which extends 100Mbps of Ethernet communication over a single pair of communication wires up to 300 meters (1.000 feet) . The EL1551U is a component of the Nitek cutting edge Etherstretch™ product line that turns any ordinary pair of wires, such as UTP or any 2 conductor cable into a high speed network communication path.
Product Description
The EL1551U is a transmitter-receiver system which extends 100Mbps of Ethernet communication over a single pair of communication wires up to 300 meters (1.000 feet) . The EL1551U is a component of the Nitek cutting edge Etherstretch™ product line that turns any ordinary pair of wires, such as UTP or any 2 conductor cable into a high speed network communication path. The system is transparent to the network and requires very little installation time, with no setup or configuration needed. Simply connect your network devices to the network ports of the transmitter and receiver along with existing cabling and the system begins communicating.

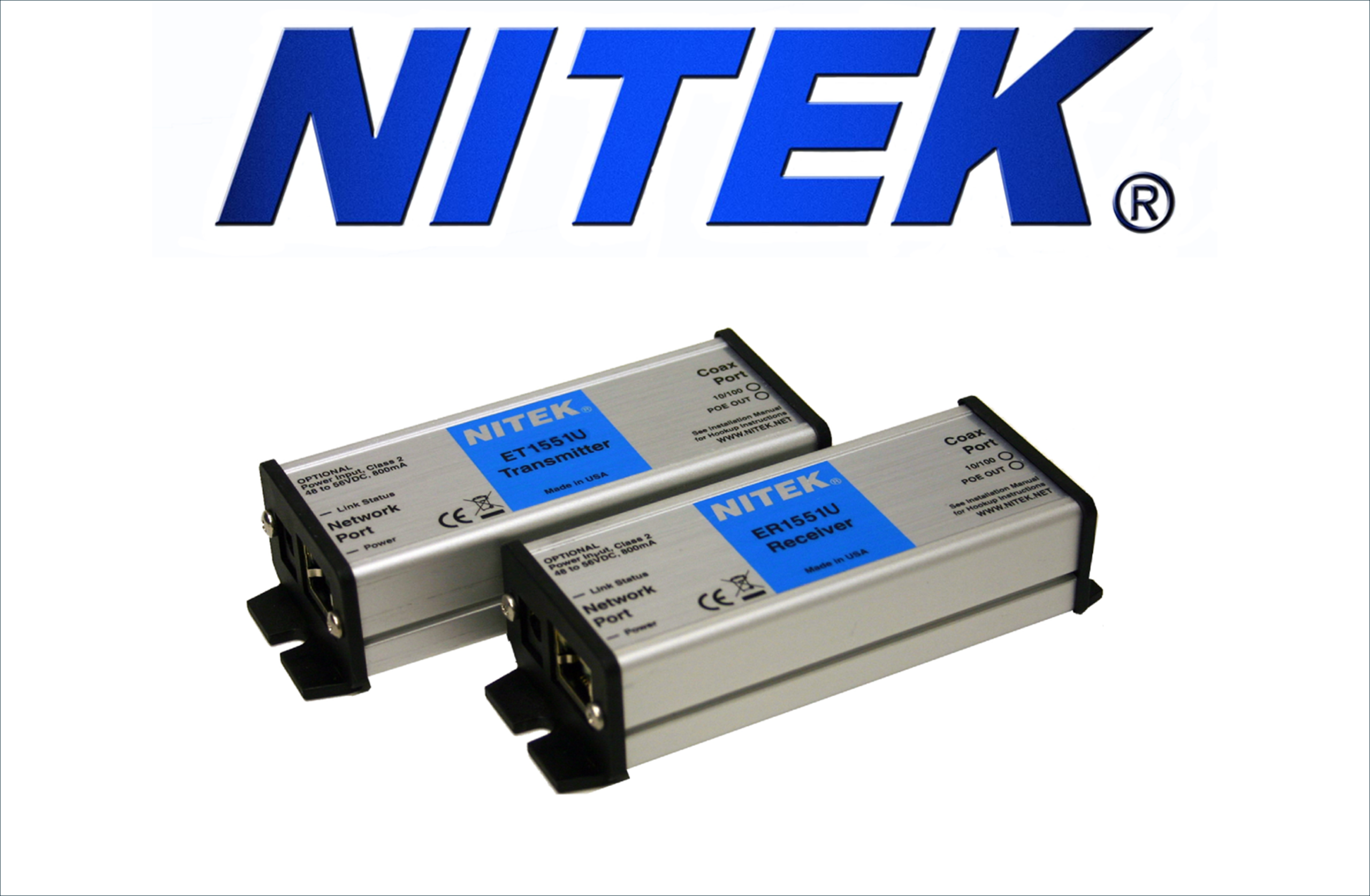

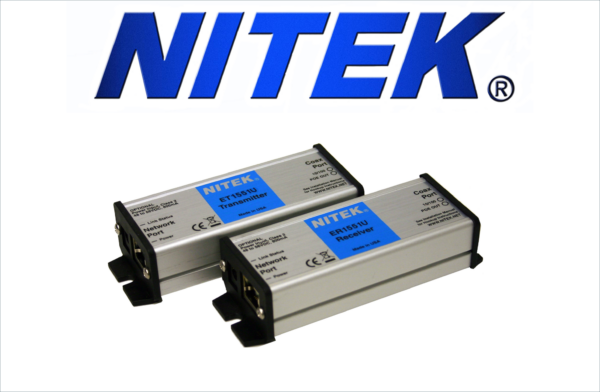

The EL1551U system is ideal for upgrading analog UTP video balun systems to IP systems without needing to replace or even disturb the existing cable infrastructure. Power is provided to the ET1551U transmitter from the ER1551U receiver unit. LED indicators show the status and speed of network communications.
Features
• Environmentally hardened – meets NEMA TS-1/TS-2 • Transmits up to distances of 300 meters (1.000 feet) • Supports mega-pixel technology • Fully transparent to the network • Upgrades systems from analog to IP cameras • Supports 10/100 over Twisted Pair cables • Easy to install, no set up required • No MAC or IP addressing required • LED indicators for network signals, link status and power • Optional power supply can insert PoE power for non-PoE switches • Ground loop isolation • Made in the U.S.A.
Tech Specs
| Size | 1.1″H x 1.6″W x 4.6″D (including tabs) |
| Power Requirements | PoE (IEEE 802.3af or at) or PS48 Power Supply |
| Ethernet Connection | Auto Configuring 10 ? 100 RJ45 port |
| EtherStretch Link Connection | RJ45 port |
| LED Indicators | Link Status, Power, PoE Out, 10Mb or 100mb |
| Shipping Weight | 2 lbs. |
| Mounting | Two 3/8 inch mounting slots |
| Operating Temperature | -40 to 75 degrees C/-40 to 167 degrees F |
| Environmental | NEMA TS-2 (see spec sheet download) |
Downloads
EL1551U Specification Sheet Last Updated: December 12, 2017
EL1551U Installation Manual Last Updated: September 10, 2017
EL1551U A&E Specification Last Updated: April 18, 2018
