EE328

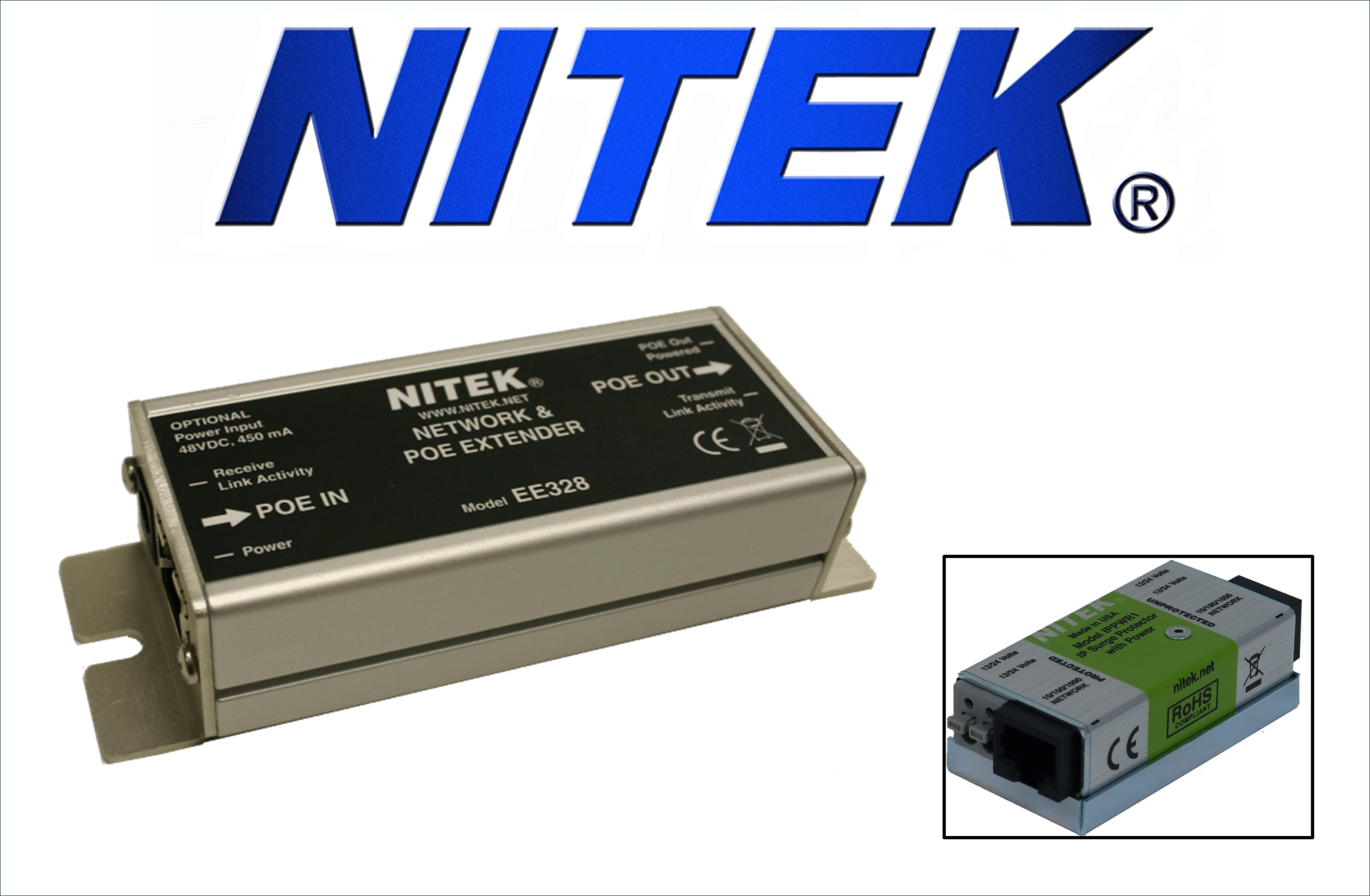

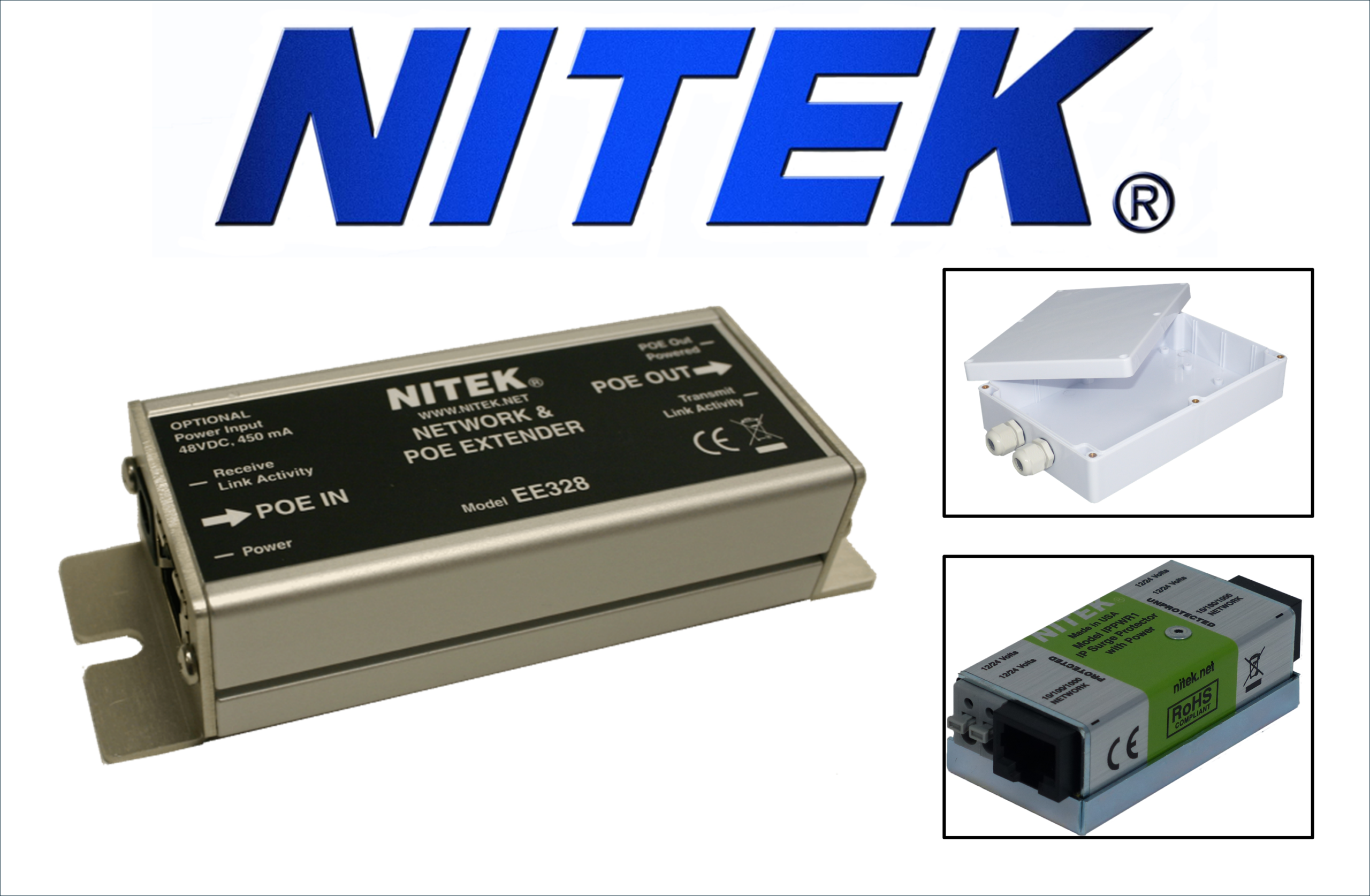

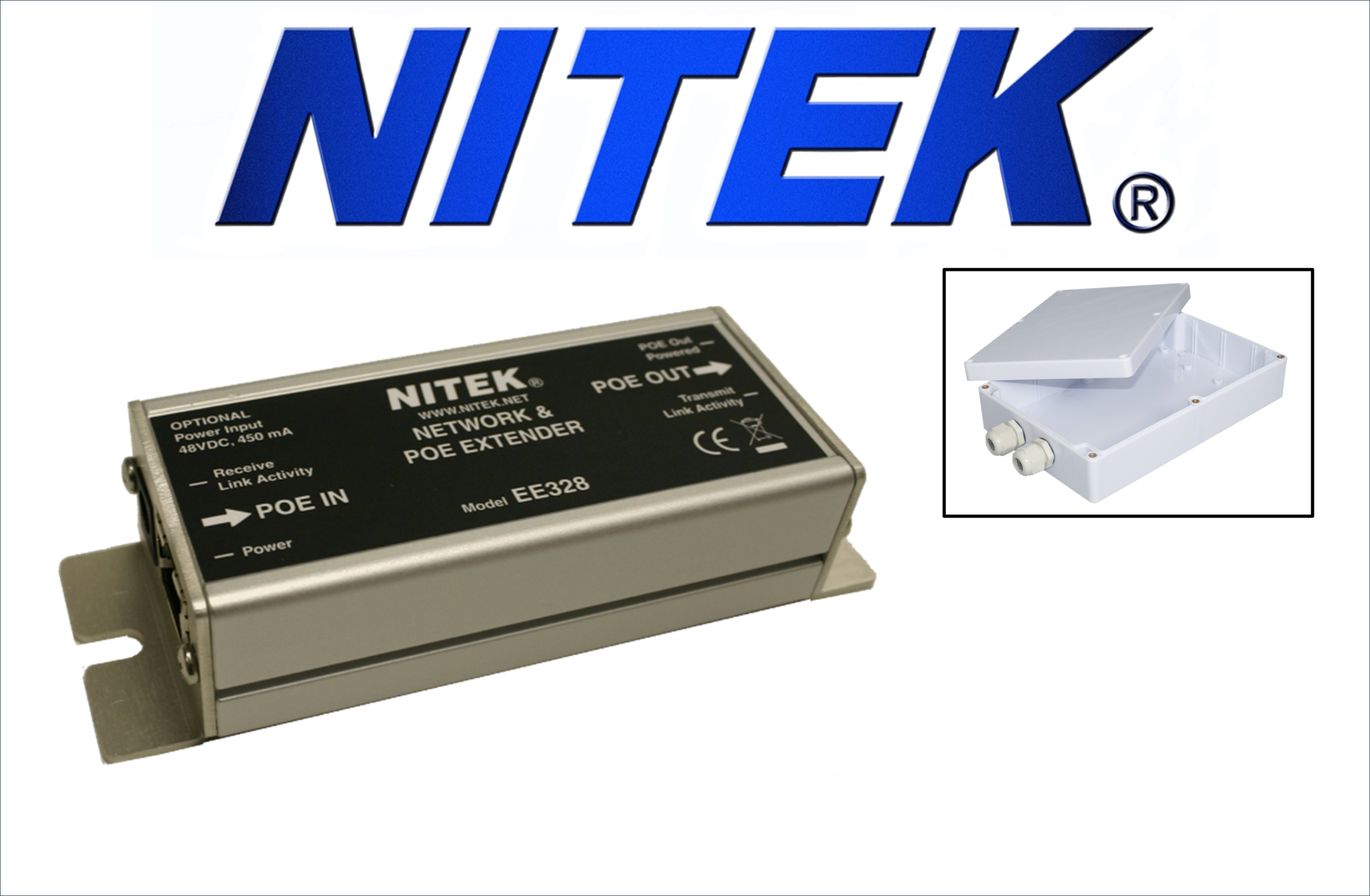

The EE328 is a single unit IP Network and PoE Repeater that requires very little installation time and absolutely no set up or configuration
Product Description
The EE328 Ethernet & PoE Extender is designed to greatly extend the distance to which IP cameras and network devices can operate. The EE328 regenerates network communication and passes PoE power through itself and down the network cable. Each EE328 unit extends the cable run by 100 meters or 328 feet. When used with an optional 48VCD power supply the EE328 can operate as a fully independent repeater and IEEE802.3af PoE inserter. If needed, several EE328 units can be used in series to extend a network communication and PoE by every 100 meters or 328 feet. (max. 5 extenders equals 600 meters or 1.968 feet).
Features
- Extends existing Ethernet Network 10/100 cable runs additional 100m/328ft
- Built-in Surge protection
- Unit powered by PoE input or external power supply, passes PoE through. Optional power supply can insert PoE power for non-PoE switches
- Can be daisy-chained for additional distance
- Fully transparent to the network
- Easy to install, no set up required
Tech Specs
| Size | 1.1″H x 1.6″W x 3.6″D |
| Ethernet | 100BaseTX Full Duplex |
| Power Requirements | PoE or PS48 Power Supply (48vdc @ 15.4watts) |
| Connection Method | RJ45 |
| Clamping Voltage | 15 Volts |
| Impedance | 110 ohms |
| Temperature | -10 to 60C / 14 to 140F |
| Frequency | DC to 10 MHz |
| Shipping Weight | 2.4 lb |
Variants: -S1, -W1, -WS1
