DVRPTR16

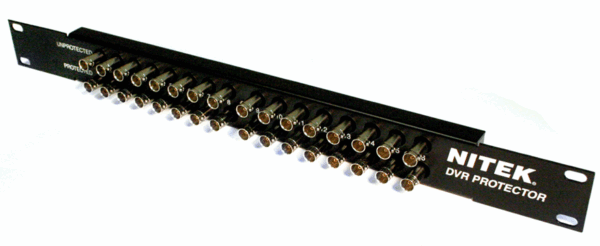

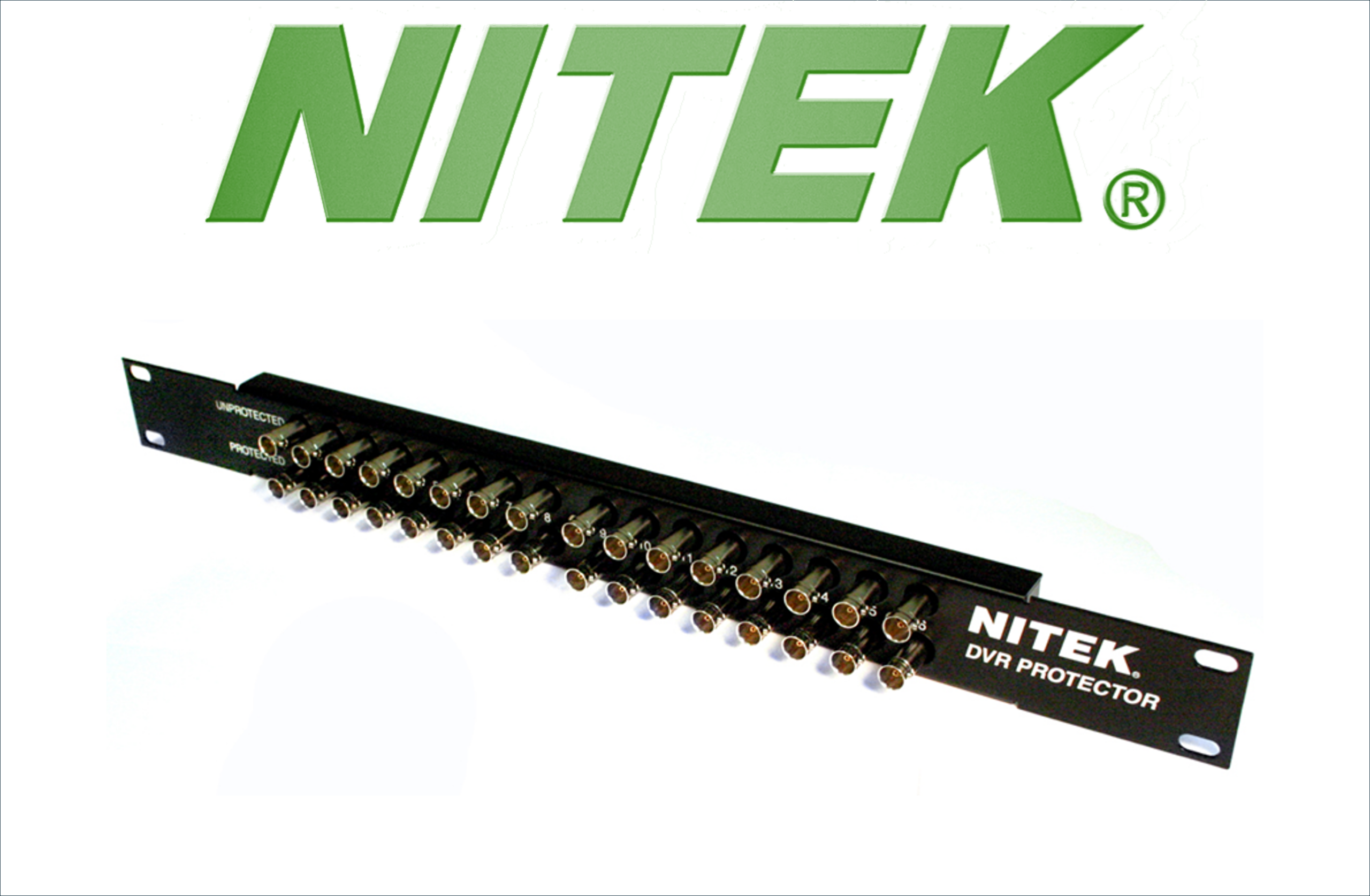

16 Port Video Surge Protection Panel With Data Protection.
Fits Standard 19″ Rack Cabinet.
Product Description
The DVRPTR16 is designed to provide multi-stage surge protection to the 16 video channels and the 2 or 4 wire data for P/T/Z systems. It is cost-effective and ideally suited for protecting multi-input video devices such as a DVR, multiplexer or matrix system. The DVRPTR16 is rack mountable in a standard 19″ rack. It installs in minutes and provides a single easy access point for grounding. It uses 2.8 volt solid state clamping for unmatched protection.
Features
• Provides 16 channels of surge protection
• Provides 2 and 4 wire P/T/Z protection
• Multi-stage protection clamps to 2.8 volts
• Fits standard 19″ rack cabinets
• Easy to install
Tech Specs
| Size | 1RU |
| Connection Method | Standard female BNC video connectors Standard data screw terminals |
| Clamping Voltage | 2.8v |
| Insertion Loss | <0.2dB |
| Impedance | 50 and 75 ohms |
| Temperature | -40C to +85C |
| Frequency | DC to 10 MHz |
| Shipping Weight | 3 lbs |
| Common Mode Rejection | >60 dB typ. |
Downloads
DVRPTR16 Specification Sheet Last Updated: August 25, 2017
DVRPTR16 Installation Manual Last Updated: August 25, 2017
DVRPTR16 A&E Specification Last Updated: April 19, 2018
