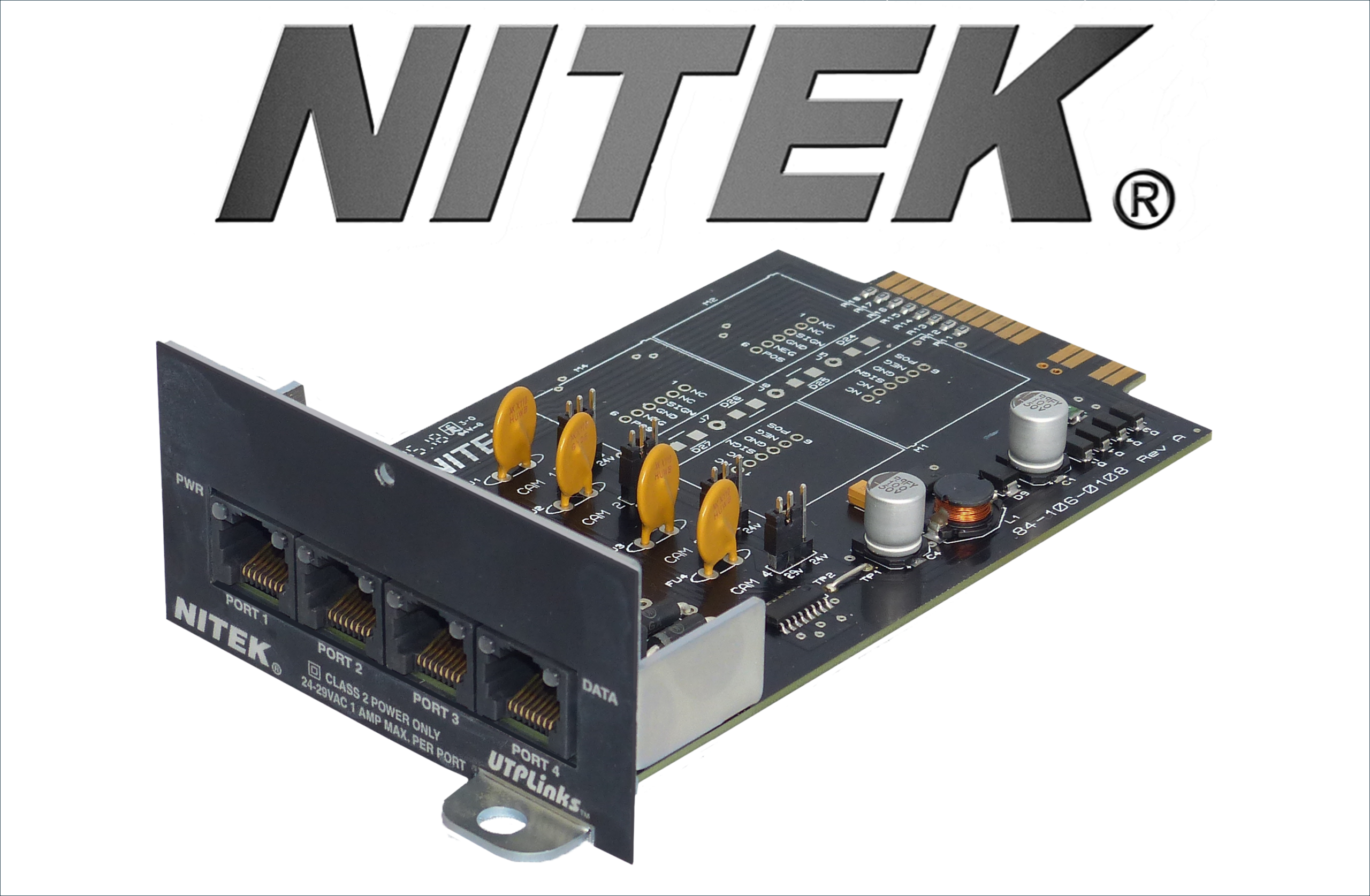

The CXM22 crossover insertion cards are designed for use with the CX254 or CX452 modular card cages (sold separately). These units are components of the Nitek UTPLinks video, data & power twisted pair system.
The CXM22 crossover cards are unique unshielded twisted pair (UTP) transmission products designed to operate with TIA/EIA standards-based network cabling. The cards plug into and are powered through the CX254 or CX452 modular card cages. The CX254 and CX452 are 1 RU card cages that holds up to 5 of the crossover insertion cards. The crossover system and power supply are typically located in an IDF (telecom) closet. There are three card models available and any of the three can be plugged into the card cage in any combination. Each card is designed to accommodate 4 cameras.
The primary function of each of the cards is to provide a means of interfacing copper backbone cables to horizontal cable runs and inserting voltage to the individual camera and/or P/T/Z over the horizontal run. In addition, models of the cards are available that provide RS422 distribution and/or video transceivers (see available cards – under Ordering Information). Using a single standards-compliant 4-pair UTP category 5 or better cable, video, data and power can be sent up to 100 meters to a fixed or P/T/Z camera.
• Provides future expansion or features modification
• 4 port individual, self-resetting fused outputs
• One 4-pair CAT 5 cable can be used for data and power
• Detection LED’s for power and data
• Compatible with TIA/EIA 568A or 568B
• Selectable voltage 24/28VAC
