CAMPDD24
Camera Video, PTZ, and 12/24 Volt Power Surge Protector
Product Description

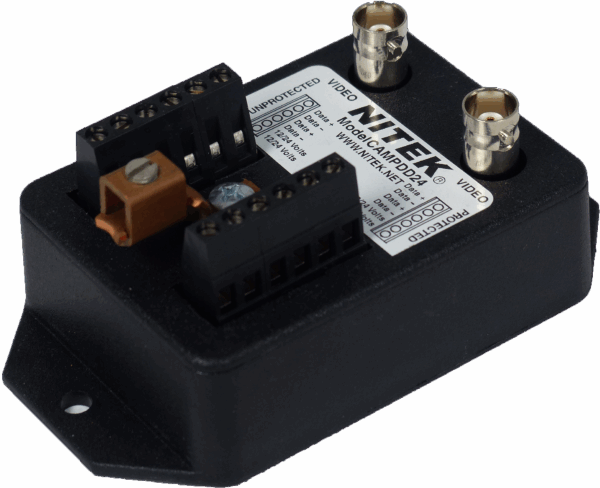

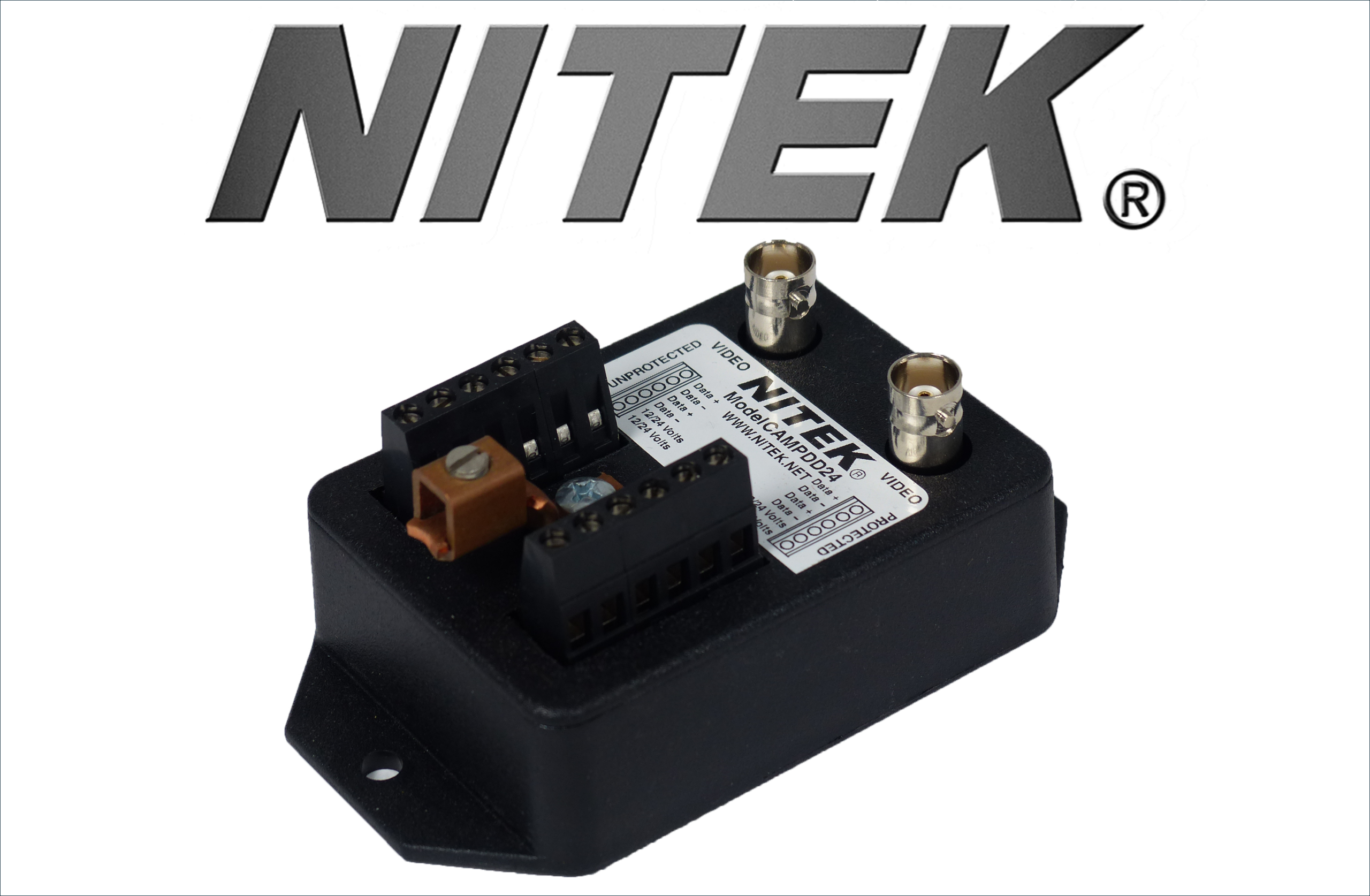

The CAMPDD24 is a multi-function surge protector for in-line coaxial video, two twisted pairs of data and the 12 or 24 VAC camera supply. The CAMPDD24 provides multi-stage surge protection to a single camera system and P/T/Z unit for each of these functions. The unit can be used at the camera or head-end. The CAMPDD24 is ideally suited for outdoor cameras, where extreme protection on all signal connections is required. The unit has BNC connectors at the input and output for connection to the coax and screw terminals at the inputs and outputs for connection to the power. The CAMPDD24 provides a heavy, single point ground connection and is easily installed in minutes.
Features
• Unique multi-stage design
• Insertion loss < 0.2 dB
• 2.8V clamping voltage
• Multi-function – protects video, & camera power inputs
• Heavy single point ground
• Easy to install
• Lifetime warranty
Tech Specs
| Size | 1.7″H x 4.3″W x 2.5″D |
| Power Requirements | None required |
| Connection Method | Video – BNC connectors Power – Screw terminals Control – Screw terminals Data – Screw terminals |
| Clamping Voltage | Video – 2.8V
Power – 33Vrms |
| Video Insertion Loss | <0.2dB |
| Impedance | 50 or 75 ohms |
| Temperature | -40C to +85C |
| Frequency | DC to 10 MHz |
| Shipping Weight | 1 lb |
Downloads
CAMPDD24 Specification Sheet Last Updated: August 25, 2017
CAMPDD24 Installation Manual Last Updated: August 25, 2017
